M80-6811642

Datamate L-Tek DIL Female Vertical SMT Connector, gold clip + tin shell, 8+8 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 13		 Quantity Unit Price Ext Price Packaging
104 $9.57 $995.28 Tube
507 $8.87 $4497.09 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationVertical
Connection TypeSurface Mount (SMT)
Number Of Rows2
Number Of Contacts16
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Latching StyleCompatible with latches
Termination Finish100% Tin over Nickel
Housing MaterialPolyamide (Nylon) 46
Flammability RatingUL94V-0
Weight1.188g
Dimensions19.15 x 7.50 x 5.60
Above Board Height5.60mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-6651642

 View Details
Image 1 Image 1

M80-6661642

 View Details
Image 1 Image 1

M80-8261642

 View Details
Image 1 Image 1

M80-8281642

 View Details
Image 1 Image 1

M80-8411642

 View Details
Image 1 Image 1

M80-8541642

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-6811645

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-7701642

View Details

M80-8501642

View Details

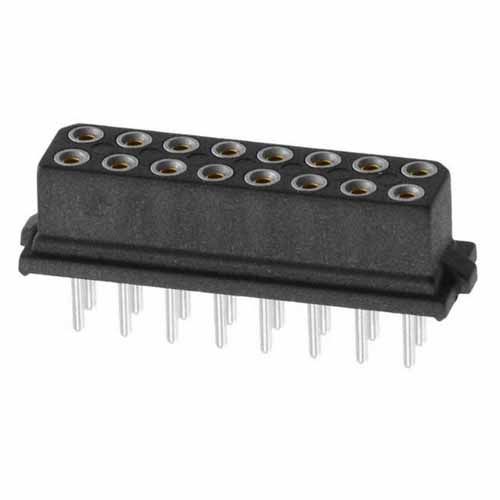

M80-8871601
