M80-8411642

Datamate L-Tek DIL Male Horizontal 3mm Throughboard Connector, unlatched, selective gold + tin, 8+8 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 13		 Quantity Unit Price Ext Price Packaging
286 $3.23 $923.78 Tube
1001 $3.12 $3123.12 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts16
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Latching StyleNone
Termination Finish100% Tin over Nickel
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.111g
Dimensions19.60 x 8.85 x 8.15
Above Board Height5.85mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0030006

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-6131645

 View Details
Image 1 Image 1

M80-6811642

 View Details
Image 1 Image 1

M80-7881605

 View Details
Image 1 Image 1

M80-8881605

 View Details
Image 1 Image 1

M80-8891605

 View Details
Image 1 Image 1

M80-8441645

 View Details
Image 1 Image 1

M80-8501642

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

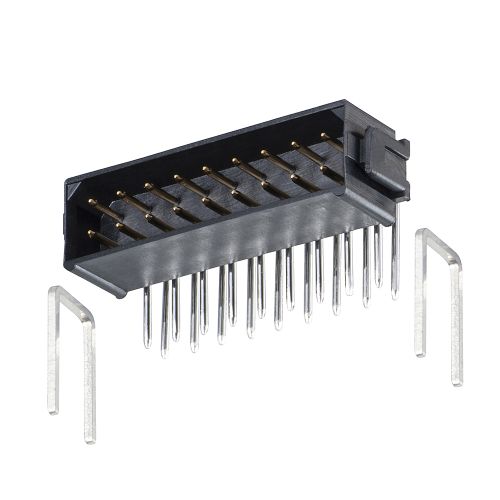

M80-8411842

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-6651642

View Details

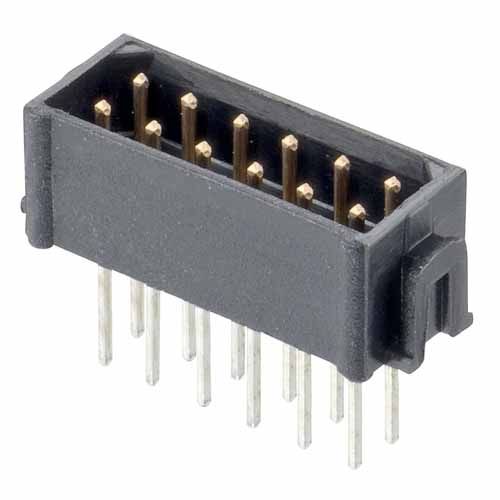

M80-7541642

View Details

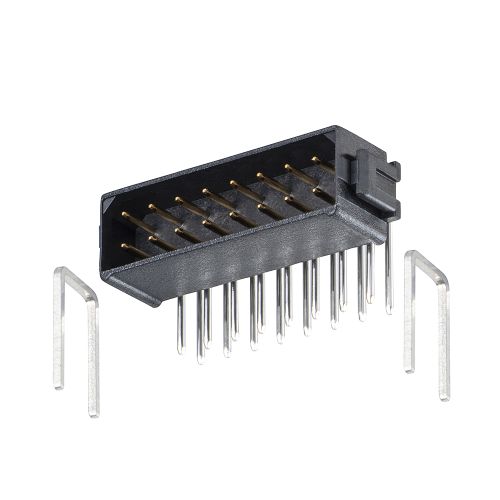

M80-8681622
