M80-7900342

Datamate L-Tek SIL Female Vertical 4.5mm Throughboard Connector, gold clip + tin shell, 3 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 26		 Quantity Unit Price Ext Price Packaging
520 $2.027 $1054.04 Tube
5018 $1.97 $9885.46 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Latching StyleCompatible with latches
Termination Finish100% Tin over Nickel
Housing MaterialPolyamide (Nylon) 46
Flammability RatingUL94V-0
Weight0.236g
Dimensions9.15 x 3.40 x 9.48

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8060305

 View Details
Image 1 Image 1

M80-8070305

 View Details
Image 1 Image 1

M80-8080305

 View Details
Image 1 Image 1

M80-8090305

 View Details
Image 1 Image 1

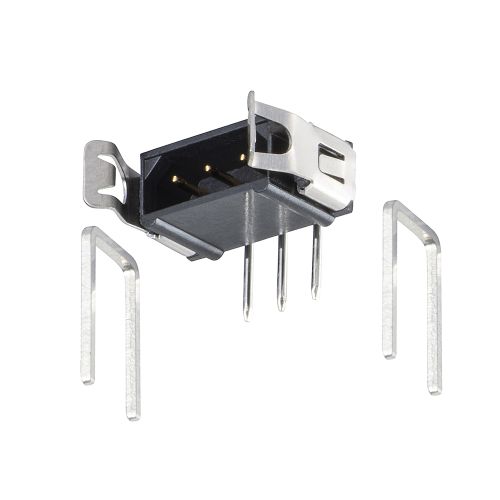

M80-8420342

 View Details
Image 1 Image 1

M80-8430342

 View Details
Image 1 Image 1

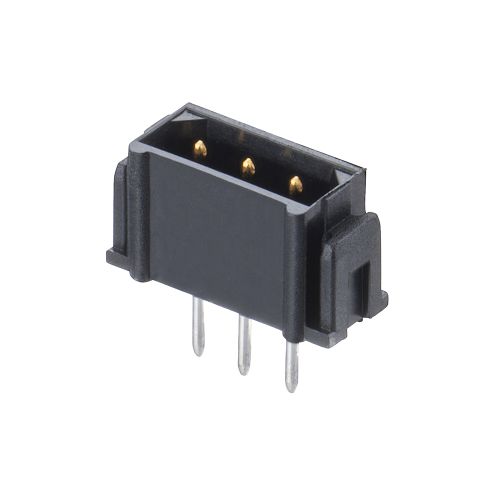

M80-8520342

 View Details
Image 1 Image 1

M80-8820342

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-7900345

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

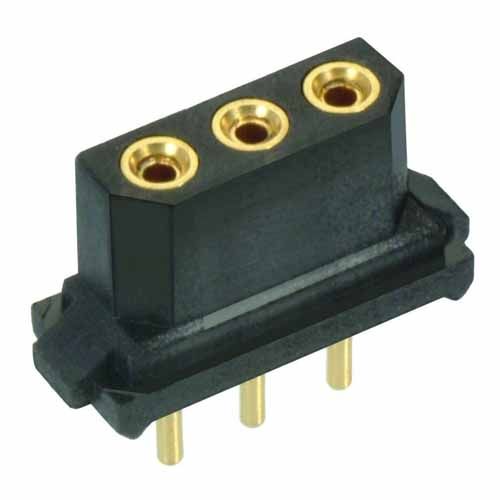

M80-8400345
