M80-8080405

Datamate L-Tek SIL Male Small Bore (24-28 AWG) Crimp Connector, latched, gold, 4 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 200		 Quantity Unit Price Ext Price Packaging
200 $2.24 $448 Bulk/Loose
600 $2.16 $1296 Bulk/Loose
1000 $2.13 $2130 Bulk/Loose
2600 $2.11 $5486 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size24-28 AWG
Number Of Rows1
Number Of Contacts4
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Latching StyleLocking Latch
Termination FinishGold
Housing MaterialPolyamide (Nylon) 46
Flammability RatingUL94V-0
Weight0.682g
Dimensions12.10 x 4.00 x 11.70
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

T5747

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Separator Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-299

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0410005

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-7980405

 View Details
Image 1 Image 1

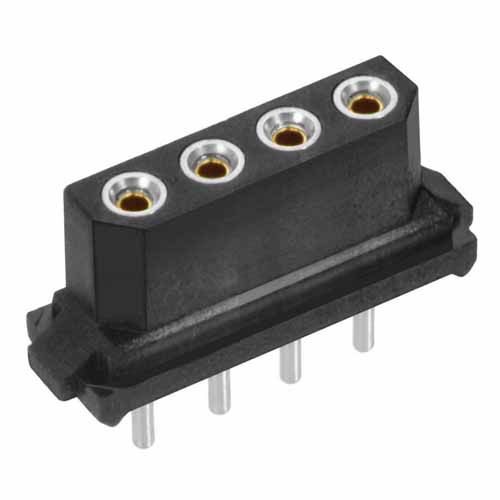

M80-8400442

 View Details
Image 1 Image 1

M80-8980405

 View Details
Image 1 Image 1

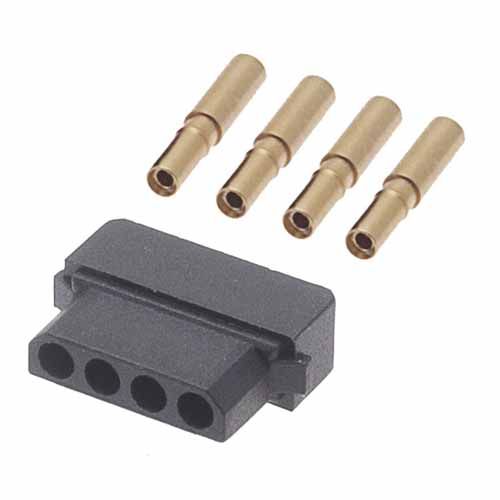

M80-8990405

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8080505

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-8060405

View Details

M80-8090405

View Details

M80-8120405

View Details

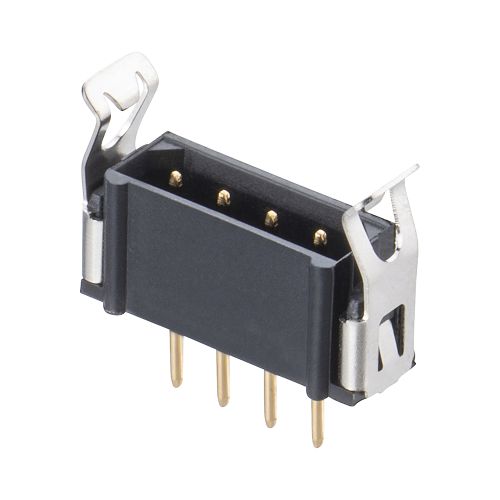

M80-8820445

View Details
