Product Images

M80-8820445

Datamate L-Tek SIL Male Vertical 3mm Throughboard Connector, latched, gold, 4 contacts

Download Datasheet Request Sample
In-Stock: 336
Factory Lead Time (wks): 25
All prices are in USD
SPQ: 21		 Quantity Unit Price Ext Price Packaging
1008 $1.751 $1765.008 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Latching StyleLocking Latch
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight0.364g
Dimensions12.10 x 3.85 x 11.35

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Separator Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-299

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0030006

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-7980405

 View Details
Image 1 Image 1

M80-8400442

 View Details
Image 1 Image 1

M80-8450445

 View Details
Image 1 Image 1

M80-8980405

 View Details
Image 1 Image 1

M80-8990405

 View Details
Image 1 Image 1

M80-FD20468L0-0150L

 View Details
Image 1 Image 1

M80-6110445

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8820442

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-8080405

View Details

M80-8090405

View Details

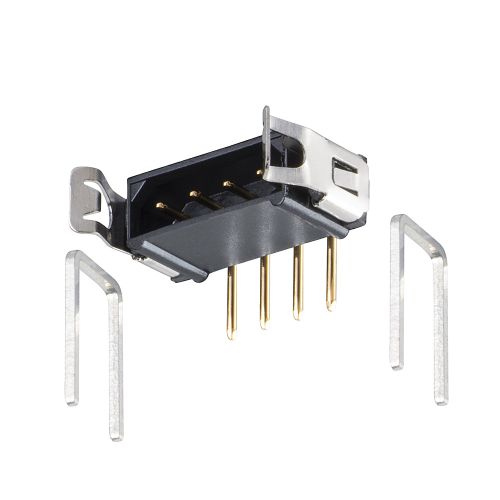

M80-8420445
