M80-8090205

Datamate L-Tek SIL Male Large Bore (22 AWG) Crimp Connector, latched, gold, 2 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 25
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
200 $1.97 $394 Bulk/Loose
500 $1.86 $930 Bulk/Loose
1000 $1.749 $1749 Bulk/Loose
2000 $1.7 $3400 Bulk/Loose
5000 $1.69 $8450 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size22 AWG
Number Of Rows1
Number Of Contacts2
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Latching StyleLocking Latch
Termination FinishGold
Housing MaterialPolyamide (Nylon) 46
Flammability RatingUL94V-0
Weight0.439g
Dimensions8.10 x 4.00 x 11.70
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

T5747

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Separator Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-299

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0400005

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-7980205

 View Details
Image 1 Image 1

M80-8400242

 View Details
Image 1 Image 1

M80-8980205

 View Details
Image 1 Image 1

M80-8990205

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8090305

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-8070205

View Details

M80-8080205

View Details

M80-8130405

View Details

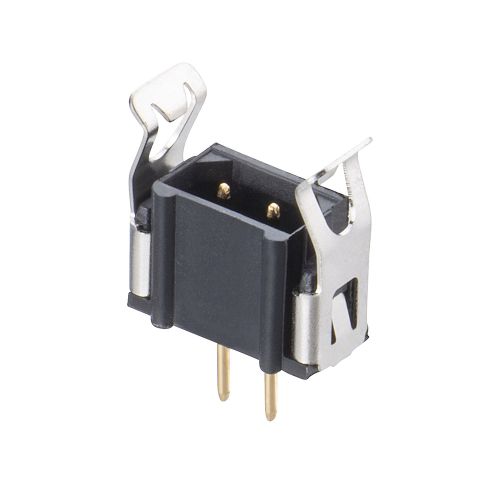

M80-8820245
