Product Images

M80-8990205

Datamate L-Tek SIL Female Large Bore (22 AWG) Crimp Connector, gold clip + gold shell, 2 contacts

Download Datasheet Request Sample
In-Stock: 5
Factory Lead Time (wks): 23
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
500 $1.164 $582 Bulk/Loose
1000 $1.095 $1095 Bulk/Loose
2500 $1.02 $2550 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size22 AWG
Number Of Rows1
Number Of Contacts2
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Latching StyleCompatible with latches
Termination FinishGold
Housing MaterialPBT
Flammability RatingUL94V-0
Weight0.266g
Dimensions7.15 max x 3.40 x 8.15 max
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

T5747

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0110005

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8060205

 View Details
Image 1 Image 1

M80-8070205

 View Details
Image 1 Image 1

M80-8080205

 View Details
Image 1 Image 1

M80-8090205

 View Details
Image 1 Image 1

M80-8360242

 View Details
Image 1 Image 1

M80-8370242R

 View Details
Image 1 Image 1

M80-8420242

 View Details
Image 1 Image 1

M80-8430242

 View Details
Image 1 Image 1

M80-8520242

 View Details
Image 1 Image 1

M80-8820242

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

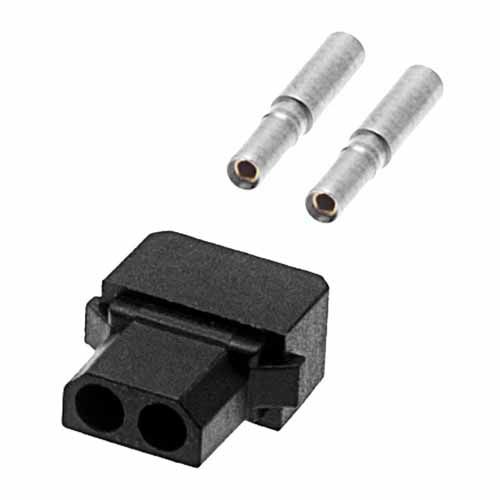

Image 1 Image 1

M80-8990201

 View Details
