M80-8542042

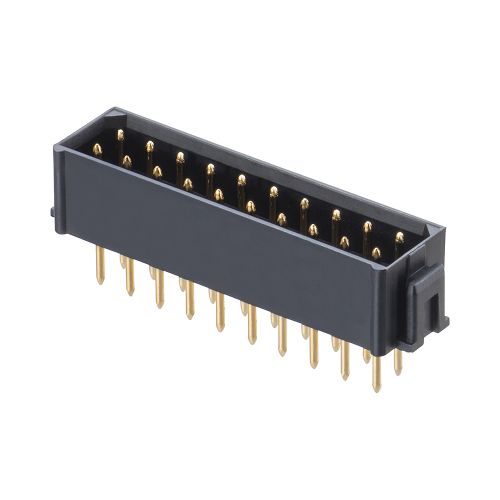

Datamate L-Tek DIL Male Vertical 3mm Throughboard Connector, unlatched, selective gold + tin, 10+10 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 22
All prices are in USD
SPQ: 10
Quantity Unit Price Ext Price Packaging
170 $3.19 $542.3 Tube
500 $2.769 $1384.5 Tube
1000 $2.632 $2632 Tube
2550 $2.63 $6706.5 Tube


Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts20
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Latching StyleNone
Termination Finish100% Tin over Nickel
Housing MaterialPPS
Flammability RatingUL94V-0
Weight0.84g
Dimensions23.60 x 5.85 x 8.40
Above Board Height5.40mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingPC Tail / Throughboard
