M80-8542045

Datamate L-Tek DIL Male Vertical 3mm Throughboard Connector, unlatched, gold, 10+10 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
1000 $2.75 $2750 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Latching StyleNone
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight0.84g
Dimensions23.60 x 5.85 x 8.40

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0030006

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8442045

 View Details
Image 1 Image 1

M80-8502042

 View Details
Image 1 Image 1

M80-8882005

 View Details
Image 1 Image 1

M80-8892005

 View Details
Image 1 Image 1

M80-6132045

 View Details
Image 1 Image 1

M80-6812042

 View Details
Image 1 Image 1

M80-7882005

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8542042

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-8262042

View Details

M80-8412045

View Details

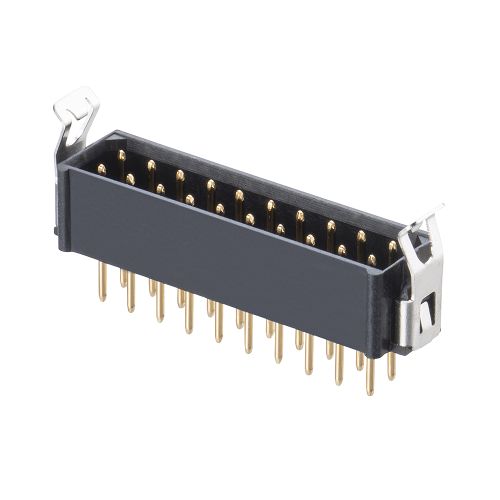

M80-8532045
