M80-8782222

Datamate L-Tek SIL Male Horizontal 3mm Throughboard Connector, unlatched, selective gold + tin/lead, 22 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 5		 Quantity Unit Price Ext Price Packaging
1000 $2.865 $2865 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 235°C for 5 seconds
Latching StyleNone
Termination FinishTin/Lead
Housing MaterialPBT
Flammability RatingUL94V-0
Weight1.365g
Dimensions47.60 x 6.85 x 6.15

Environmental and Export

Rohs StatusNot RoHS Compliant (2015/863/EU)

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0030006

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

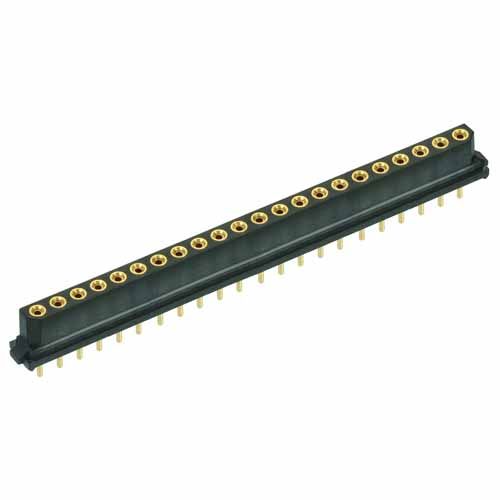

M80-8402245

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8781722

 View Details
