Product Images

M80-8970201

Datamate L-Tek SIL Female Vertical 3mm Throughboard Connector, gold clip + tin/lead shell, 2 contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 235°C for 5 seconds
Latching StyleCompatible with latches
Termination FinishTin/Lead
Housing MaterialPBT
Flammability RatingUL94V-0
Weight0.159g
Dimensions7.15 max x 3.40 x 8.10

Environmental and Export

Rohs StatusNot RoHS Compliant (2015/863/EU)

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8060205

 View Details
Image 1 Image 1

M80-8070205

 View Details
Image 1 Image 1

M80-8080205

 View Details
Image 1 Image 1

M80-8090205

 View Details
Image 1 Image 1

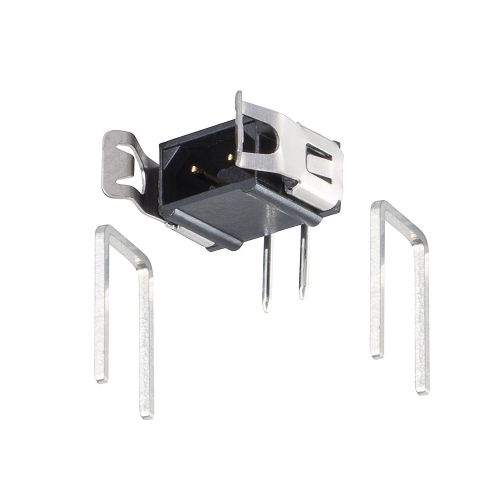

M80-8760222

 View Details
Image 1 Image 1

M80-8770222

 View Details
Image 1 Image 1

M80-8780222

 View Details
Image 1 Image 1

M80-8790222

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8970205

 View Details
