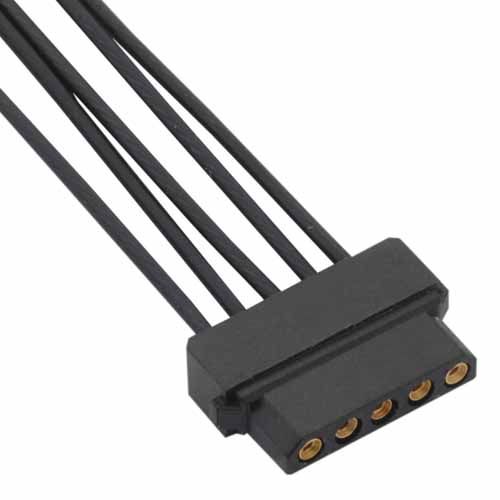

Product Images

M80-8990505

Datamate L-Tek SIL Female Large Bore (22 AWG) Crimp Connector, gold clip + gold shell, 5 contacts

Download Datasheet Request Sample
In-Stock: 20
Factory Lead Time (wks): 22
All prices are in USD
SPQ: 1
Quantity Unit Price Ext Price Packaging
100 $2.881 $288.1 Bulk/Loose
250 $2.656 $664 Bulk/Loose
500 $2.49 $1245 Bulk/Loose
1000 $2.35 $2350 Bulk/Loose


Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size22 AWG
Number Of Rows1
Number Of Contacts5
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Latching StyleCompatible with latches
Termination FinishGold
Housing MaterialPBT
Flammability RatingUL94V-0
Weight0.587g
Dimensions13.15 max x 3.40 x 8.15 max
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Use with Positioner

Articles from this product series can be use in the following assortments:

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Use with Primary Alternative

Articles from this product series can be use in the following assortments:
