M80-9060402

Datamate Metal Backshell for J-Tek or Mix-Tek connectors; male backshell for front panel mount (cable) or board mount (vertical PCB connectors), suitable for 4 (2+2) signal contacts or equivalent

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
OrientationVertical
Connection TypeFront Panel Mount or Board Mount
Number Of Rows2
Number Of Contacts4
Environmental Ratings-55°C to +125°C
Housing MaterialAluminium Alloy
Weight0.97g
Dimensions15.70 x 8.00 x 7.70
Above Board Height8.00mm
End StackableNo
Pcb MountingFront Panel Mount or Board Mount

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Housings

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5110442

 View Details
Image 1 Image 1

M80-5C10405M3

 View Details
Image 1 Image 1

M80-5D10405M2

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9450402

 View Details
Image 1 Image 1

M80-9460402

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

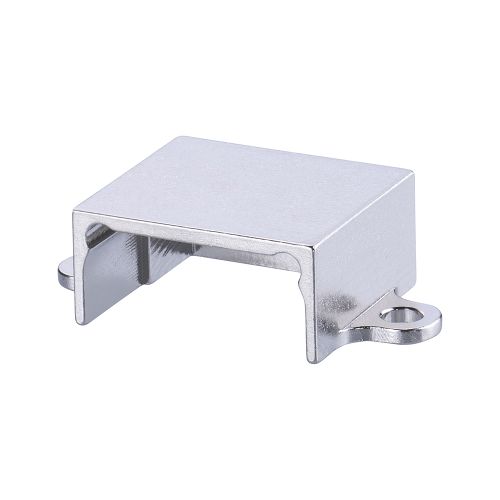

M80-9040402

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download
