M80-9060602

Datamate Metal Backshell for J-Tek or Mix-Tek connectors; male backshell for front panel mount (cable) or board mount (vertical PCB connectors), suitable for 6 (3+3) signal contacts or equivalent

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
OrientationVertical
Connection TypeFront Panel Mount or Board Mount
Number Of Rows2
Number Of Contacts6
Environmental Ratings-55°C to +125°C
Housing MaterialAluminium Alloy
Weight1.041g
Dimensions17.70 x 8.00 x 7.70
Above Board Height8.00mm
End StackableNo
Pcb MountingFront Panel Mount or Board Mount

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Housings

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5110642

 View Details
Image 1 Image 1

M80-5C10605M3

 View Details
Image 1 Image 1

M80-5D10605M3

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9450602

 View Details
Image 1 Image 1

M80-9460602

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

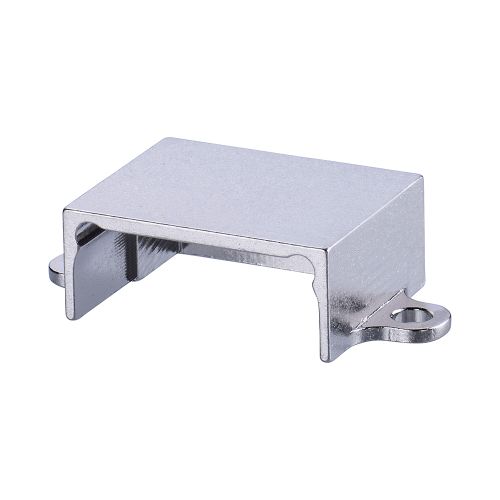

M80-9040602
