M80-F150210-100-402

Datamate J-Tek Flex Circuit Assembly, Male-to-Female (Female-to-Male), with Jackscrews, 100mm long, 5+5 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
100 $112.57 $11257 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale & Female
Connection TypeFlex Circuit Assembly
Number Of Rows2
Number Of Contacts10
Current Rating1A max per contact (25°C)
Environmental Ratings-55°C to +125°C
Jackscrew StyleInternal Thread Jackscrew (Standard Gender Male) and Floating Jackscrew with Hex Slotted Head (Standard Gender Female)
Housing MaterialPPS (connector only)
Flammability RatingUL94V-0 (connector only)
Weight3.65g
Dimensions100.00 x 23.00 x 10.00
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingFlex Circuit Assembly

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5001042

 View Details
Image 1 Image 1

M80-5021042

 View Details
Image 1 Image 1

M80-5101042

 View Details
Image 1 Image 1

M80-5121042

 View Details
Image 1 Image 1

M80-4001042

 View Details
Image 1 Image 1

M80-4021042

 View Details
Image 1 Image 1

M80-4201042

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

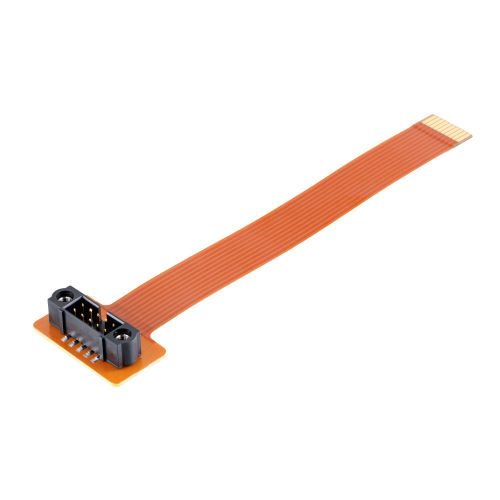

M80-F150210-100-L

 View Details
