M80-MC335M1-06-0150L

Datamate Power Cable Assembly, Male Single Ended, internal threaded jackscrews, white 12 AWG cable, 150mm long, 6 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 19
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
5 $105.896 $529.48 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch4.00mm (0.157")
GenderMale
OrientationStraight
Connection TypeCable Assembly
Wire Size12 AWG
Number Of Rows1
Current Rating20A max per contact
Environmental Ratings-55°C to +125°C
Jackscrew StyleInternal Thread Jackscrew (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight32.541g
Dimensions150.00 x 34.00 x 6.00
End StackableNo
Pcb MountingCable Assembly

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-290

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-335

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4000000F1-06-321-00-000

 View Details
Image 1 Image 1

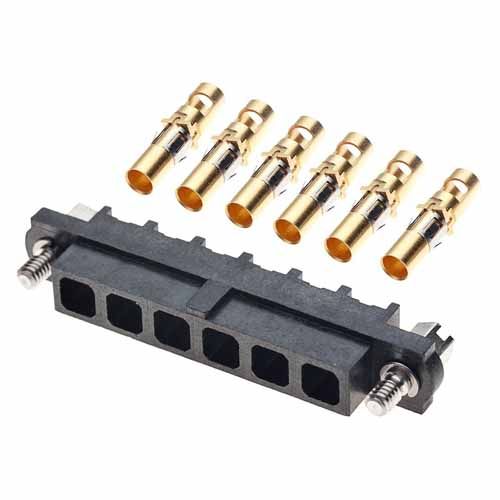

M80-4000000F1-06-325-00-000

 View Details
Image 1 Image 1

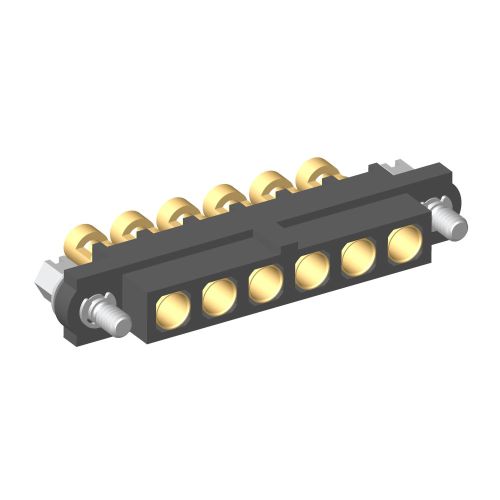

M80-4000000F5-06-327-00-000

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-MC335M1-06-XXXXL

 View Details
