M80-PF1

Datamate Mix-Tek Female Vertical Throughboard High Power Contact, 3.5mm tail

Download Datasheet Request Sample

Factory Lead Time (wks): 19
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
500 $7.42 $3710 Bulk/Loose
1000 $6.8 $6800 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch4.00mm (0.157")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Current Rating40A max per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination FinishGold
Weight0.26g
Dimensions8.15 x 2.95 square
Above Board Height4.65mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-PM1

 View Details
Image 1 Image 1

M80-PM2

 View Details
Image 1 Image 1

M80-PM3

 View Details
Image 1 Image 1

M80-PM4

 View Details
Image 1 Image 1

M80-PM5

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-PF2

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

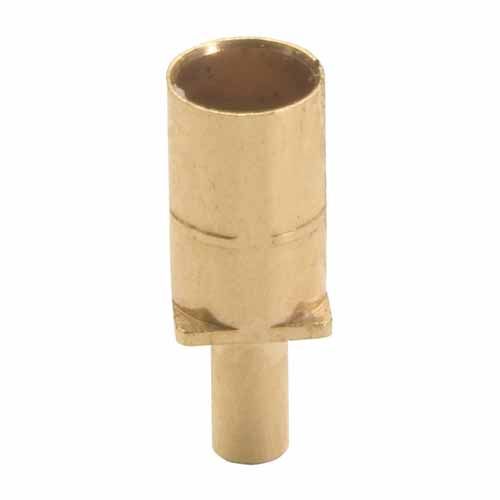

M80-321

View Details

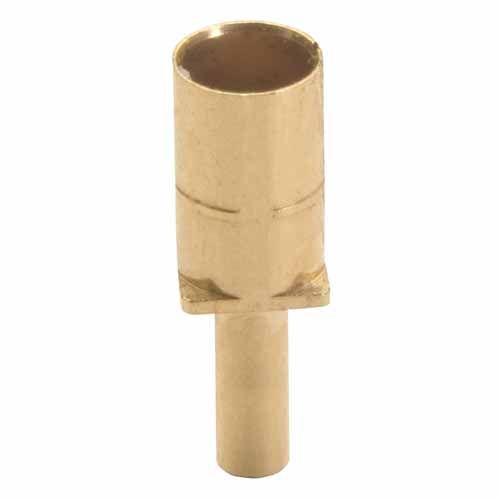

M80-322
