P70-1010045R

Individual Spring Loaded Contact / Pogo Pin, SMT, 5mm free height, Tape & Reeled with pick & place cap

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 800
Quantity Unit Price Ext Price Packaging
4000 $0.462 $1848 Tape and Reel
4800 $0.453 $2174.4 Tape and Reel


Product Attributes

ManufacturerHarwin
PackageTape and Reel
Product FamilyEZi
Product StatusActive
RangePOGOPINS
OrientationVertical
Connection TypeSurface Mount (SMT)
Current Rating2A
Environmental Ratings-40°C to +85°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination FinishGold
Weight0.07g
Dimensions5.00 x Ø2.00
Above Board Height5.00mm
Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

DEV-001

View Details

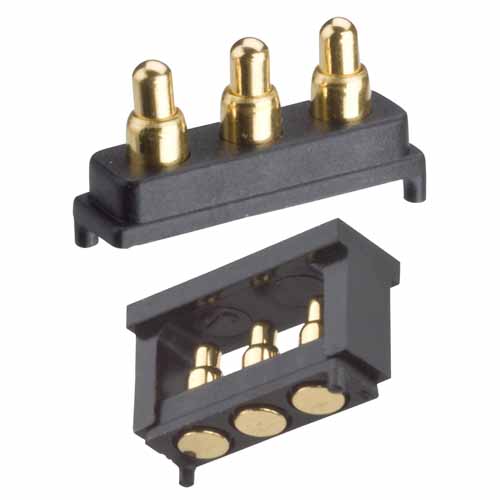

P20-0345R
