Home - Products - Connectors, Interconnects - Contacts - Contacts, Spring Loaded (Pogo Pins), and Pressure - P70-2000045R
Product Images

P70-2000045R

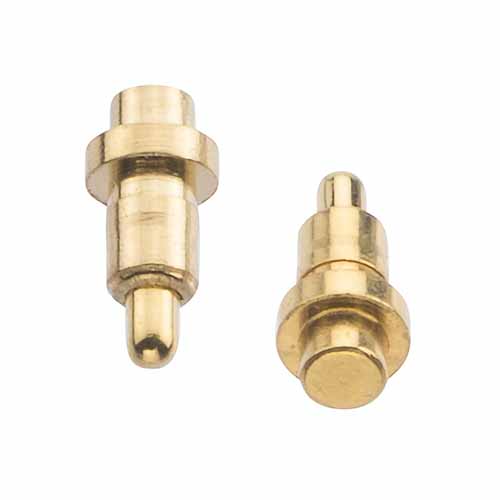

Individual Spring Loaded Contact / Pogo Pin, SMT with location peg or Throughboard mounting, 3.6mm free height, Tape & Reeled with pick & place cap

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 800
Quantity Unit Price Ext Price Packaging
10400 $0.458 $4763.2 Tape and Reel


Product Attributes

ManufacturerHarwin
PackageTape and Reel
Product FamilyEZi
Product StatusActive
RangePOGOPINS
OrientationVertical
Connection TypeSurface Mount (SMT)
Current Rating2A
Environmental Ratings-40°C to +85°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination FinishGold
Weight0.071g
Dimensions4.60 x Ø2.00
Above Board Height3.60mm
Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download
