S1741-46R

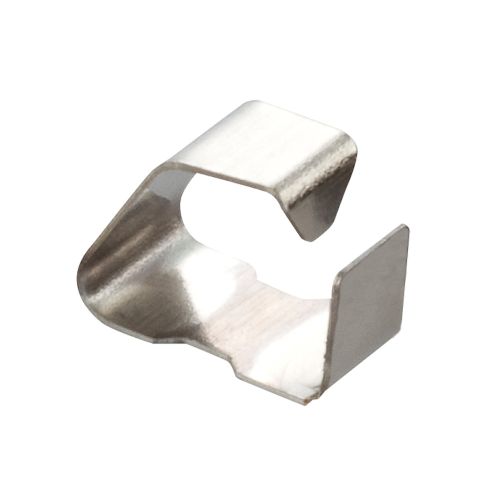

SMT Spring Contact (also known as Grounding Contact or Shield Finger), 2.5mm high, tin, C-shape contact, Tape & Reeled

Download Datasheet Request Sample
In-Stock: 100
Factory Lead Time (wks): 16
All prices are in USD
SPQ: 2500
Quantity Unit Price Ext Price Packaging
25000 $0.125 $3125 Tape and Reel
62500 $0.12 $7500 Tape and Reel


Product Attributes

ManufacturerHarwin
PackageTape and Reel
Product FamilyEZi
Product StatusActive
RangeSPRING CONTACTS
OrientationVertical
Connection TypeSurface Mount (SMT)
Current Rating6A
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Weight0.04g
Dimensions5.40 x 3.10 x 2.50
Above Board Height2.50mm
Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

DEV-001

View Details

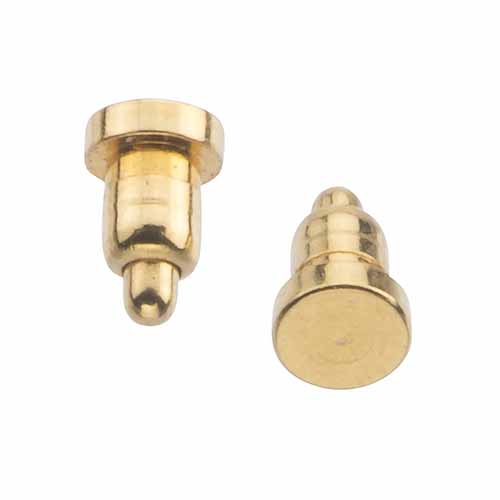

P70-5000045R
