KA1-2020498F1

Headers, Receptacles, Female Sockets ; 8.50mm Pitch High-Reliability Connector - Kona

Download Datasheet Request Sample


All prices are in USD
SPQ: 40		 Quantity Unit Price Ext Price Packaging
40 $13 $520 Bag

Product Attributes

ManufacturerHarwin
PackageBag
Product FamilyHRi
Product StatusActive
RangeKona
GenderFemale
OrientationAngled
Number Of Rows1
Number Of Contacts4
Current Rating60A max per contact
Environmental Ratings-65°C to +150°C
Jackscrew StyleScrew Fixing (floating) with Hex Socket Head
Housing MaterialPPS
Flammability RatingUL94V-0
Weight8.169g
Dimensions50.00 x 12.70 x 22.20
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

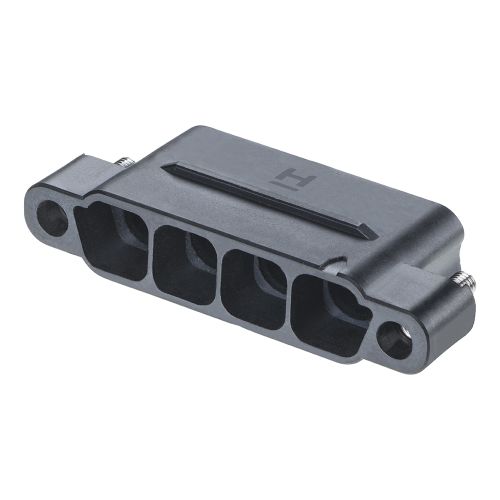

KA1-3010498M1

 View Details
Image 1 Image 1

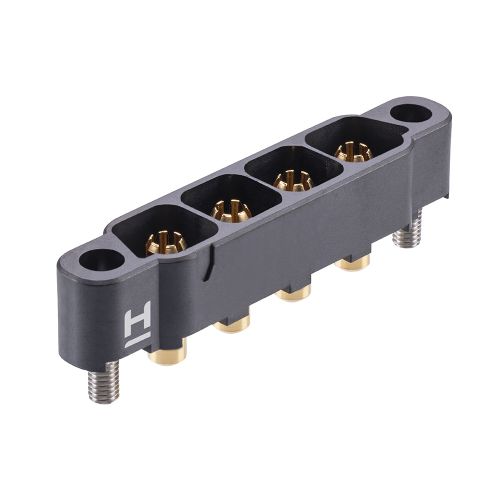

KA1-MV10405M1

 View Details
Image 1 Image 1

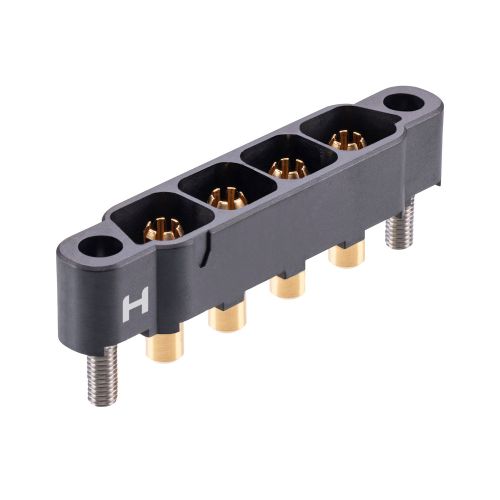

KA1-MV20405M1

 View Details
Image 1 Image 1

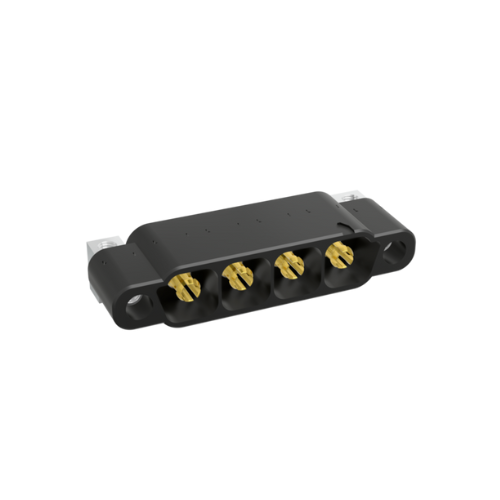

KA1-MH10405M3

 View Details
Image 1 Image 1

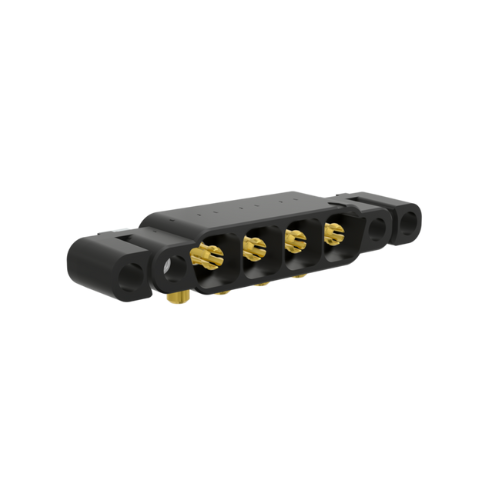

KA1-MH10405M4

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

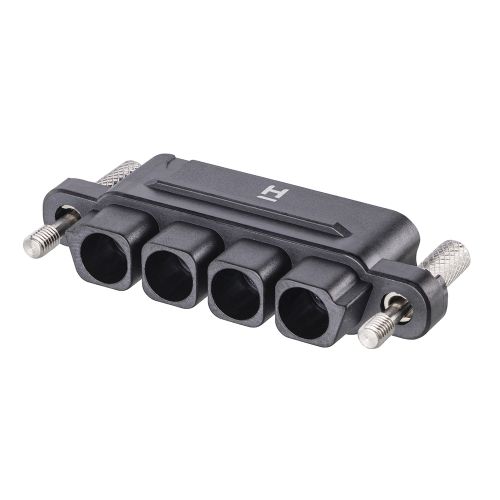

KA1-2010498F1

 View Details
Image 1 Image 1

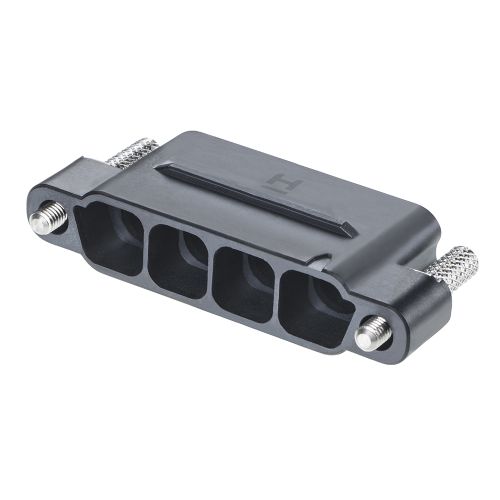

KA1-3010498M5

 View Details
Image 1 Image 1

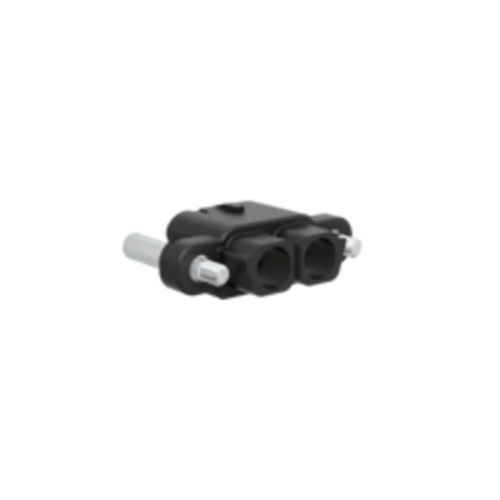

KA1-2020398F1

 View Details
