M50-3901042

1.27mm (0.05") Pitch DIL Horizontal Throughboard Pin Header, selective gold + tin, 10+10 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 300		 Quantity Unit Price Ext Price Packaging
1200 $1.494 $1792.8 Bulk/Loose
5100 $1.45 $7395 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch1.27mm (0.05")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts20
Current Rating1A per contact
Environmental Ratings-40°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Housing MaterialPolyamide (Nylon) 6T
Flammability RatingUL94V-0
Weight0.393g
Dimensions12.70 x 5.40 x 8.77
Above Board Height3.40mm
End StackableNo
Mating Pin Size0.4mm square
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-1900005

 View Details
Image 1 Image 1

M50-1920005

 View Details
Image 1 Image 1

M50-1930005

 View Details
Image 1 Image 1

M50-2000005

 View Details
Image 1 Image 1

M50-2020005

 View Details
Image 1 Image 1

M50-2030005

 View Details
Image 1 Image 1

M50-3001045

 View Details
Image 1 Image 1

M50-3101045

 View Details
Image 1 Image 1

M50-3111042

 View Details
Image 1 Image 1

M50-3121045

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

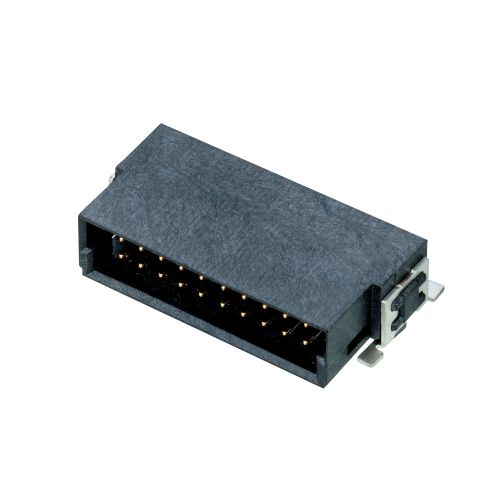

M55-7102042R

 View Details
