M50-3650642R

1.27mm (0.05") Pitch DIL Vertical Male SMT Ejector Header, selective gold + tin, pick & place (Tape & Reel packing), 6+6 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 250		 Quantity Unit Price Ext Price Packaging
2000 $1.51 $3020 Tape and Reel

Product Attributes

ManufacturerHarwin
PackageTape and Reel
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch1.27mm (0.05")
GenderMale
OrientationVertical
Connection TypeSurface Mount (SMT)
Number Of Rows2
Number Of Contacts12
Current Rating1.75A per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Housing MaterialLCP
Flammability RatingUL94V-0
Weight1.271g
Dimensions22.10 x 6.67 x 12.82
Above Board Height11.55mm
End StackableNo
Mating Pin Size0.4mm square
Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-3000645

 View Details
Image 1 Image 1

M50-3100645

 View Details
Image 1 Image 1

M50-3120645

 View Details
Image 1 Image 1

M50-3150642

 View Details
Image 1 Image 1

M50-3200645

 View Details
Image 1 Image 1

M50-3300642

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-3550642

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M50-3600642

View Details

M50-3610642

View Details

M50-3800642

View Details

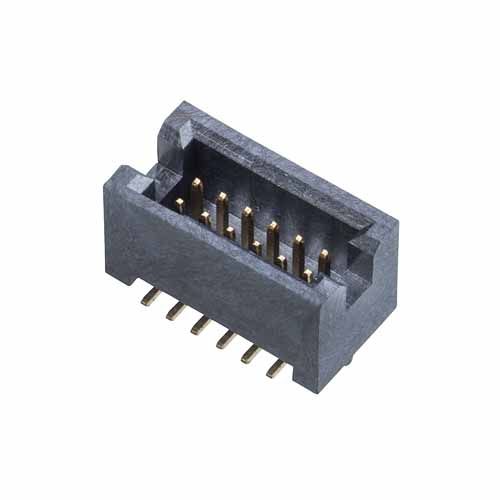

M50-4910645
