M50-4912545

1.27mm (0.05") Pitch DIL Vertical SMT Pin Header, single polarised with locating pegs, gold, 25+25 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 17		 Quantity Unit Price Ext Price Packaging
510 $4.56 $2325.6 Tube
1003 $4.55 $4563.65 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch1.27mm (0.05")
GenderMale
OrientationVertical
Connection TypeSurface Mount (SMT)
Number Of Rows2
Number Of Contacts50
Current Rating1A per contact
Environmental Ratings-40°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination FinishGold
Housing MaterialLCP
Flammability RatingUL94V-0
Weight1.458g
Dimensions34.95 x 6.30 x 6.90
Above Board Height6.10mm
End StackableNo
Mating Pin Size0.4mm square
Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

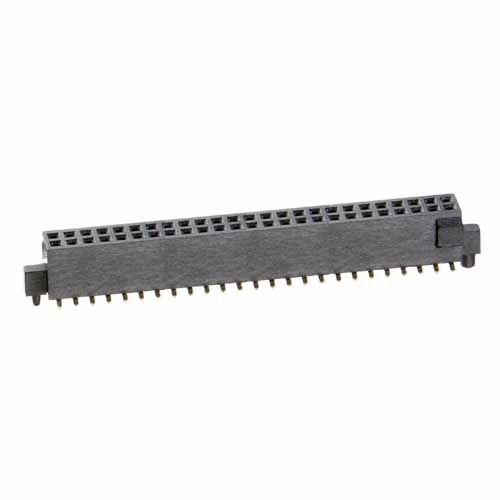

M50-4302545

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

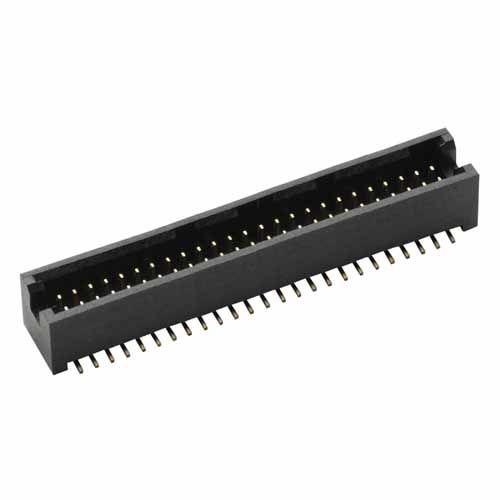

M50-4902545

 View Details
