M55-4000642-0150A

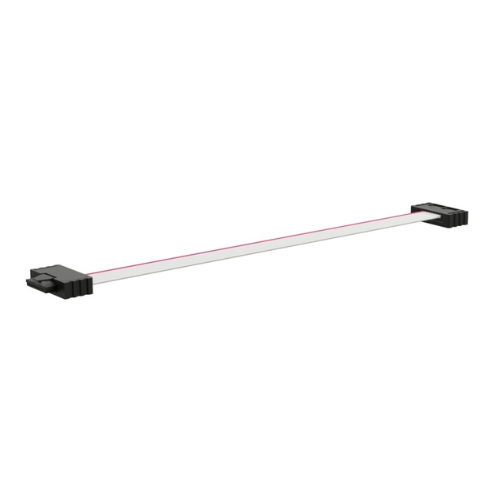

6 Pos. Kontrol Female SIL IDC Cable Assembly 150mm Double-end

Download Datasheet Request Sample

Factory Lead Time (wks): 14
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
200 $6.96 $1392 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyBBi
Product StatusActive
RangeKONTROL
Pitch1.27mm (0.05")
GenderFemale
OrientationStraight
Connection TypeCable Assembly
Wire Size26 AWG
Number Of Rows1
Number Of Contacts6
Current Rating1.2A max per contact
Environmental Ratings-20°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Latching StyleBuilt-in Latches
Termination Finish100% Tin over Nickel
Housing MaterialPPA
Flammability RatingUL94V-0
Weight4.236g
Dimensions178.00 x 18.50 x 5.00
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required
