M55-3000642R

6 Pos. Kontrol Male SIL Vertical SMT Conn. (T+R)

Download Datasheet Request Sample

Factory Lead Time (wks): 14
All prices are in USD
SPQ: 600		 Quantity Unit Price Ext Price Packaging
600 $1.06 $636 Tape and Reel

Product Attributes

ManufacturerHarwin
PackageTape and Reel
Product FamilyBBi
Product StatusActive
RangeKONTROL
Pitch1.27mm (0.05")
GenderMale
OrientationVertical
Connection TypeSurface Mount (SMT)
Number Of Rows1
Number Of Contacts6
Current Rating1.2A max per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Housing MaterialPolyamide (Nylon) 9T
Flammability RatingUL94V-0
Weight0.305g
Dimensions12.64 x 7.00 x 5.95
Above Board Height5.25mm
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M55-2100642R

 View Details
Image 1 Image 1

M55-4000642-0150A

 View Details
Image 1 Image 1

M55-4000642-0300A

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

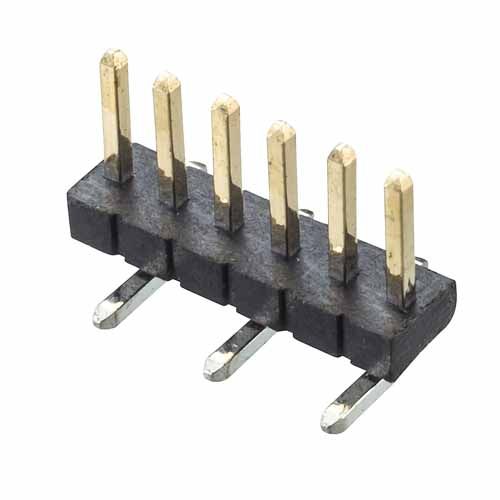

M50-3630642

 View Details
Image 1 Image 1

M55-7001242R

 View Details
Image 1 Image 1

M55-7011242R

 View Details
Image 1 Image 1

M55-7101242R

 View Details
Image 1 Image 1

M55-3100642R

 View Details
Image 1 Image 1

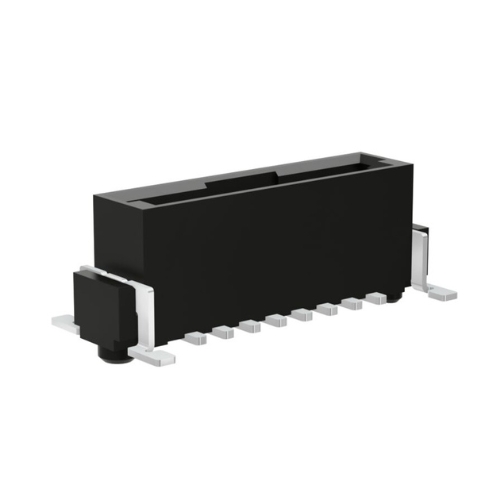

M55-3000842R

 View Details
Image 1 Image 1

M55-5000642-0150A

 View Details
Image 1 Image 1

M55-5000642-0300A

 View Details
