M7684-46

2.54mm (0.1") Pitch Closed Top Jumper Socket with Flexible Handle, multi-usage, 10mm high, tin, Light Grey

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 1000		 Quantity Unit Price Ext Price Packaging
11000 $0.19 $2090 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyBBi
Product StatusActive
RangeINDESS
Pitch2.54mm (0.1")
GenderFemale
OrientationVertical
Connection TypeJumper Socket
Number Of Rows1
Number Of Contacts2
Current Rating3A at 25°C
Environmental Ratings-40°C to +85°C
Housing MaterialPBT
Flammability RatingUL94V-0
Weight0.128g
Dimensions5.00 x 2.40 x 10.00
End StackableYes
Mating Pin Size0.64mm square
Pcb MountingJumper Socket

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M20-8751042

 View Details
Image 1 Image 1

M20-8761046

 View Details
Image 1 Image 1

M20-9721046

 View Details
Image 1 Image 1

M20-9730846

 View Details
Image 1 Image 1

M20-9761046

 View Details
Image 1 Image 1

M20-9771046

 View Details
Image 1 Image 1

M20-9981046

 View Details
Image 1 Image 1

M20-9991046

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

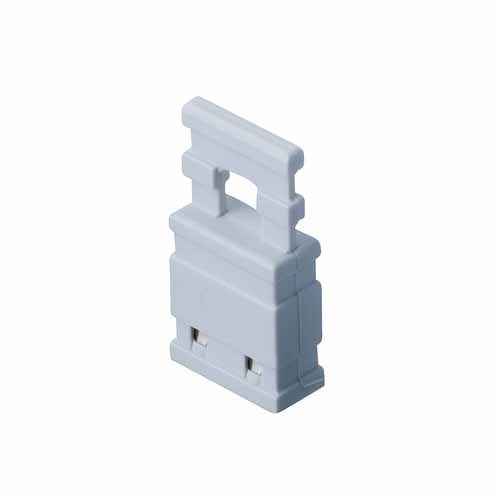

M7684-05

 View Details
