M7686-46

2.54mm (0.1") Pitch Closed Top Jumper Socket with Flexible Handle, multi-usage, 10mm high, tin, Black

Download Datasheet Request Sample

Factory Lead Time (wks): 24
All prices are in USD
SPQ: 1000		 Quantity Unit Price Ext Price Packaging
110000 $0.16 $17600 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyBBi
Product StatusActive
RangeINDESS
Pitch2.54mm (0.1")
GenderFemale
OrientationVertical
Connection TypeJumper Socket
Number Of Rows1
Number Of Contacts2
Current Rating3A at 25°C
Environmental Ratings-40°C to +85°C
Housing MaterialPBT
Flammability RatingUL94V-0
Weight0.128g
Dimensions5.00 x 2.40 x 10.00
End StackableYes
Mating Pin Size0.64mm square
Pcb MountingJumper Socket

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M20-8751042

 View Details
Image 1 Image 1

M20-8761046

 View Details
Image 1 Image 1

M20-9721046

 View Details
Image 1 Image 1

M20-9730846

 View Details
Image 1 Image 1

M20-9761046

 View Details
Image 1 Image 1

M20-9771046

 View Details
Image 1 Image 1

M20-9981046

 View Details
Image 1 Image 1

M20-9991046

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M7686-05

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M7567-46

View Details

M7582-46

View Details

M7682-46

View Details

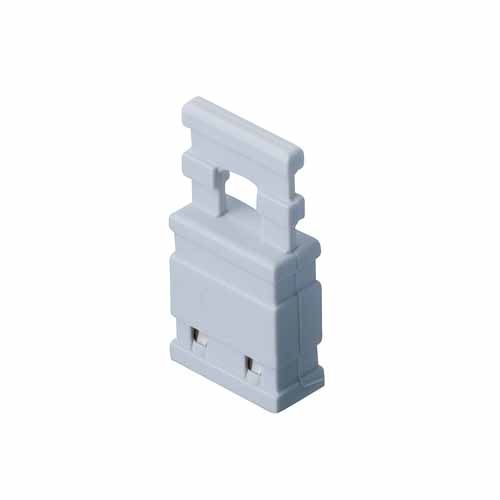

M7684-46
