M80-4000200F2-01-327-01-327

Datamate Mix-Tek Female Cable Connector, Hexagonal socket jackscrews, 2 spaces for signal contacts, 2 x 16 AWG Power contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
50 $23.644 $1182.2 Single Pack

Product Attributes

ManufacturerHarwin
PackageSingle Pack
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
GenderFemale
OrientationStraight
Connection TypeCable (Solder)
Wire Size16 AWG
Number Of RowsMixed
Number Of Contacts2
Current Rating10A max per contact
Environmental Ratings-55°C to +125°C
Jackscrew StyleFloating Jackscrew with Hex Socket Head (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.912g
Dimensions20.00 x 5.50 x 13.00
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-290

 View Details

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z9951-00

 View Details
Image 1 Image 1

Z9953-00

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9461002

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-327

 View Details

Use with Connector Series

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4000200F2-01-327-01-327

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

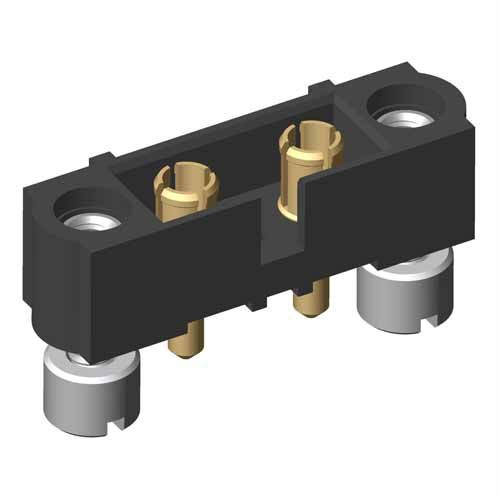

M80-5000200M2-01-331-01-331

 View Details
Image 1 Image 1

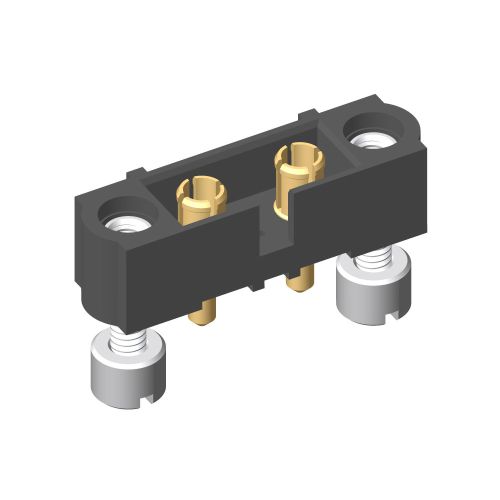

M80-5000200M3-01-331-01-331

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4000000F1-02-327-00-000

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download

Related Products

Following products can be suitable for the assortments.

M80-4C10205F1-02-325-00-000

View Details

M80-4C10205F2-01-327-01-327

View Details

M80-4C10242F1-01-327-01-327

View Details
