M80-4C10205F2-01-327-01-327

Datamate 2-Row Mix-Tek Female Crimp Connector, Hex Socket jackscrews, 2 x Small Bore (24-28 AWG) signal contacts, 2 x 16 AWG Power contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
50 $21.064 $1053.2 Single Pack

Product Attributes

ManufacturerHarwin
PackageSingle Pack
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
GenderFemale
OrientationStraight
Connection TypeCable (Solder + Crimp)
Wire Size24-28 AWG + 16 AWG
Current RatingSignal = 3.3A max individual contact, 3A max simultaneous; Power = 10A max per contact
Environmental Ratings-55°C to +125°C
Jackscrew StyleFloating Jackscrew with Hex Socket Head (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.034g
Dimensions20.00 x 5.50 x 13.00

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

T5747

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details
Image 1 Image 1

Z80-290

 View Details

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z9951-00

 View Details
Image 1 Image 1

Z9953-00

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9461002

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0130005

 View Details
Image 1 Image 1

M80-327

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Connector Series

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4C10205F2-01-327-01-327

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5L10222M5-01-333-01-333

 View Details
Image 1 Image 1

M80-5L20222M5-01-334-01-334

 View Details
Image 1 Image 1

M80-5T10222M2-01-331-01-331

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4C10205F1-02-325-00-000

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download

Related Products

Following products can be suitable for the assortments.

M80-4C10242F1-01-327-01-327

View Details

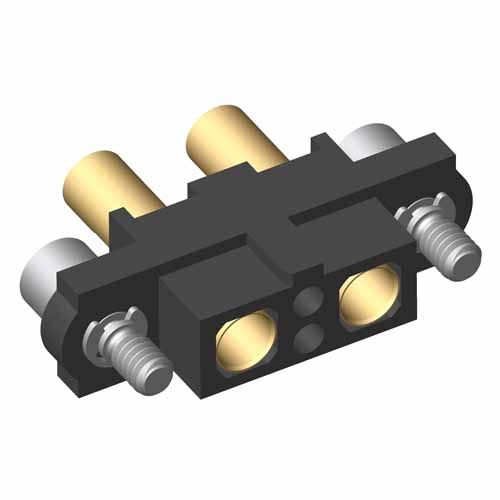

M80-4000200F2-01-327-01-327
