M80-5000000MB-06-PM5-00-000

Datamate Mix-Tek Male Cable Connector, Hex Socket Reverse fix jackscrews, no signal contacts, 6 x 10 AWG High Power contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageSingle Pack
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch4.00mm (0.157")
GenderMale
OrientationStraight
Connection TypeCable (Solder)
Wire Size10 AWG
Current Rating40A max per contact
Environmental Ratings-55°C to +125°C
Jackscrew StyleFloating Jackscrew with Hex Socket Head (Reverse Fix)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight4.386g
Dimensions34.00 x 6.00 x 14.00

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-290

 View Details

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z9951-00

 View Details
Image 1 Image 1

Z9953-00

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-PM5

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-263F906-00-00

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5000000MB-04-PM5-00-000

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download

Related Products

Following products can be suitable for the assortments.

M80-5000000M1-06-PM5-00-000

View Details

M80-5000000M2-06-PM5-00-000

View Details

M80-5000000M3-06-PM5-00-000

View Details

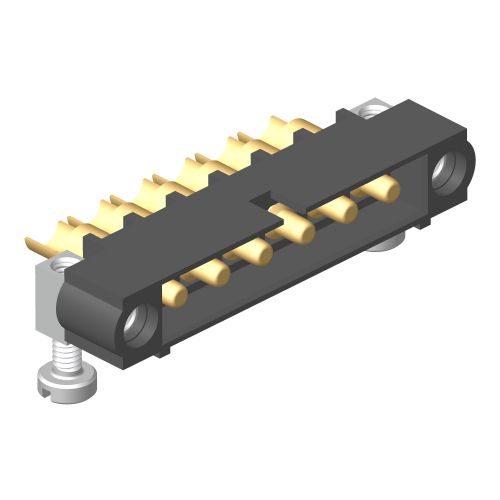

M80-5000000M5-06-PM5-00-000
