M80-5D10205M2-02-PM5-00-000

Datamate 2-Row Mix-Tek Male Crimp Connector, Jackscrews + 3.5mm front panel mount, 2 x Large Bore (22 AWG) signal contacts, 2 x 10 AWG High Power contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageSingle Pack
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
GenderMale
OrientationStraight
Connection TypeCable (Solder + Crimp)
Wire Size24-28 AWG + 10 AWG
Number Of RowsMixed
Number Of Contacts2
Current RatingSignal = 3.3A max individual contact, 3A max simultaneous; Power = 40A max per contact
Environmental Ratings-55°C to +125°C
Jackscrew StyleInternal Thread Jackscrew with Front Panel Mount Stud and Slotted Nuts (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.358g
Dimensions20.00 x 6.00 x 14.00
End StackableNo
Mating Pin SizeØ0.5mm (signal)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-193

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details
Image 1 Image 1

Z80-290

 View Details

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-298

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-1940005

 View Details
Image 1 Image 1

M80-PM5

 View Details

Use with Connector Series

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5D10205M2-02-PM5-00-000

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

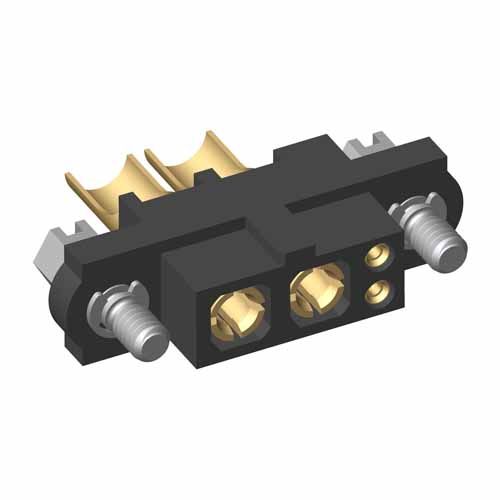

M80-4C10205F1-02-PF5-00-000

 View Details
Image 1 Image 1

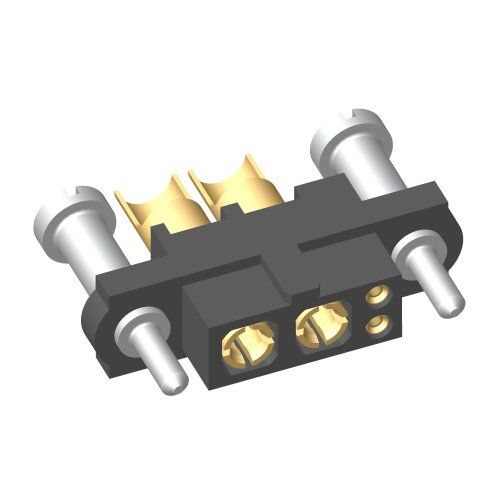

M80-4D10205FN-02-PF5-00-000

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

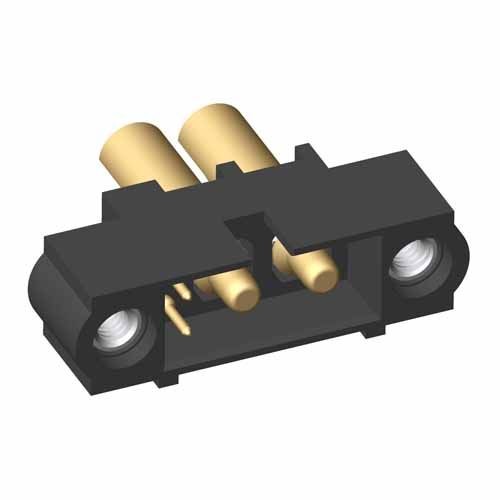

M80-5C10205M1-02-PM5-00-000
