M80-5L10222M7-02-333-00-000

Datamate 2-Row Mix-Tek Male Horizontal Throughboard Connector, Jackscrews + 5mm hex socket board mount bolts, 2 x 3mm Throughboard signal contacts, 2 x 3.5mm Throughboard Power contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Current RatingSignal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 235°C for 5 seconds
Termination FinishTin/Lead (signal), Gold (power)
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.854g
Dimensions20.00 x 8.60 x 9.50

Environmental and Export

Rohs StatusNot RoHS Compliant (2015/863/EU)

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z9950-00

 View Details
Image 1 Image 1

Z9952-00

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9041002

 View Details
Image 1 Image 1

M80-9051002

 View Details

Use with Connector Series

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5L10222M7-02-333-00-000

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2320000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

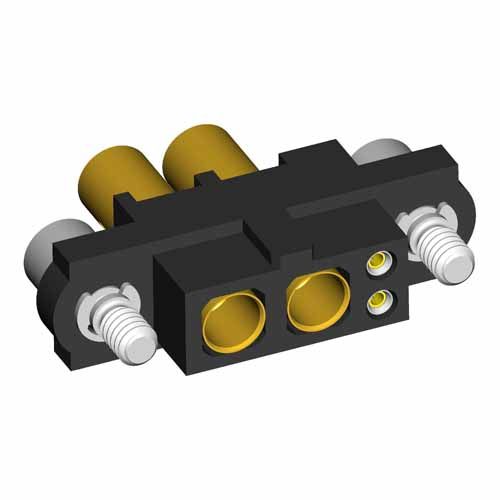

M80-4C10205F1-02-325-00-000

 View Details
Image 1 Image 1

M80-4C10205F2-02-325-00-000

 View Details
Image 1 Image 1

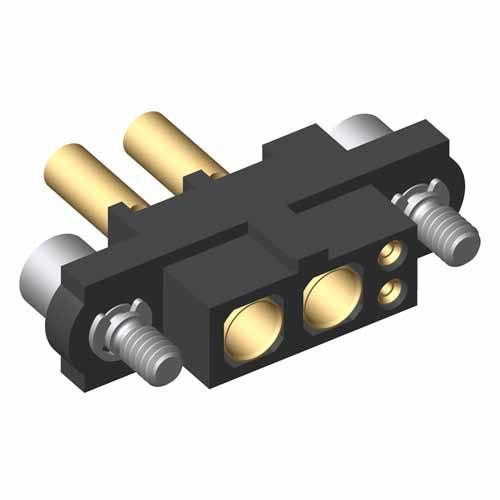

M80-4C10205F2-02-328-00-000

 View Details
Image 1 Image 1

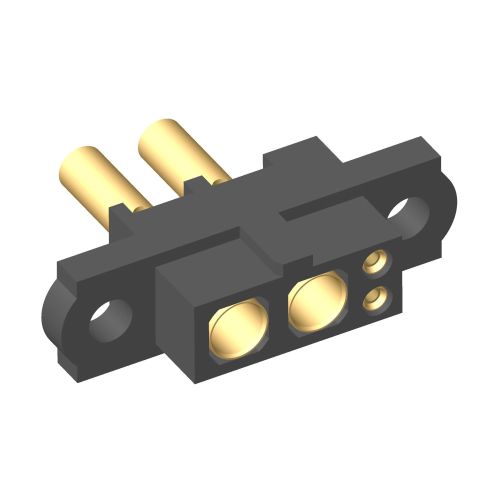

M80-4D1020500-02-328-00-000

 View Details
Image 1 Image 1

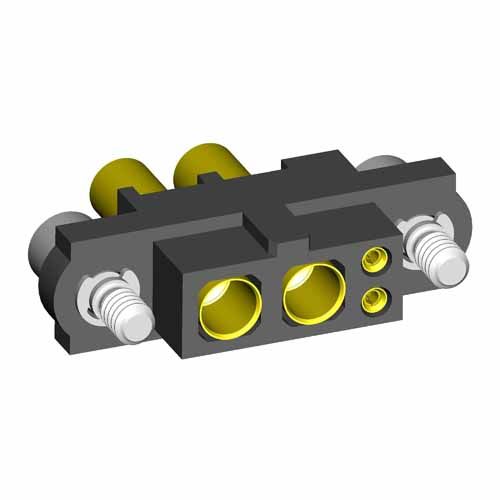

M80-4D10205F2-02-327-00-000

 View Details
Image 1 Image 1

M80-4D10205F5-02-328-00-000

 View Details
Image 1 Image 1

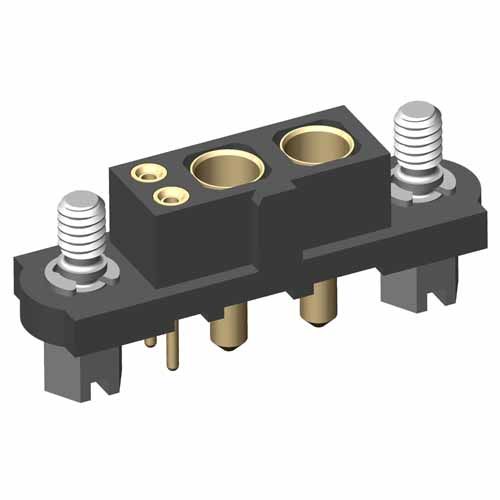

M80-4T10205F1-02-321-00-000
