M80-5L11205M1-02-PM3-00-000

Datamate 2-Row Mix-Tek Male Horizontal Throughboard Connector, Jackscrews, 12 x 3mm Throughboard signal contacts, 2 x 3.5mm Throughboard High Power contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of RowsMixed
Number Of Contacts12
Current RatingSignal = 3.3A max individual contact, 3A max simultaneous; Power = 40A max per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Jackscrew (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.334g
Dimensions30.00 x 8.25 x 9.50
Above Board Height6.00mm
End StackableNo
Mating Pin SizeØ0.5mm (signal)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Connector Series

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5L11205M1-02-PM3-00-000

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

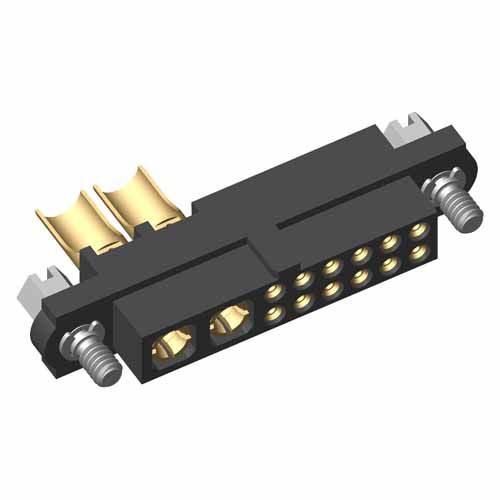

M80-4C11205F1-02-PF5-00-000
