M80-5L11442M5-03-313-02-313

Datamate 2-Row Mix-Tek Male Horizontal Throughboard Connector, Jackscrews + 5mm board mount bolts, 14 x 3mm Throughboard signal contacts, 5 x 3mm Throughboard Coax contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of RowsMixed
Number Of Contacts14
Current RatingSignal = 3.3A max individual contact, 3A max simultaneous; Coax = 0.5A per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Jackscrew with Slotted Board Mount Bolts (Standard Gender)
Termination Finish100% Tin over Nickel (signal), Gold (coax)
Housing MaterialPPS
Flammability RatingUL94V-0
Weight4.11g
Dimensions44.00 x 8.60 x 9.00
Above Board Height6.00mm
End StackableNo
Mating Pin SizeØ0.5mm (signal)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9043402

 View Details
Image 1 Image 1

M80-9053402

 View Details

Use with Connector Series

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5L11442M5-03-313-02-313

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2270000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

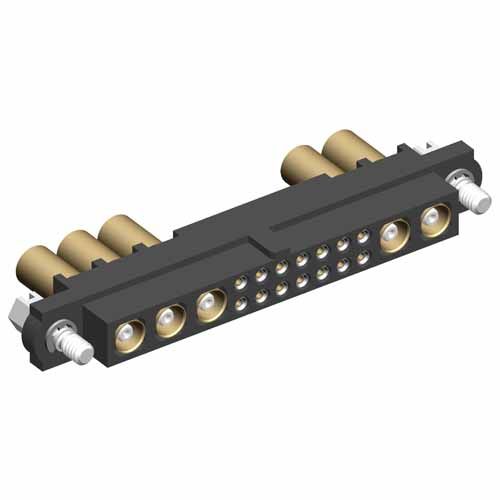

M80-4C11442F1-03-307-02-307

 View Details
Image 1 Image 1

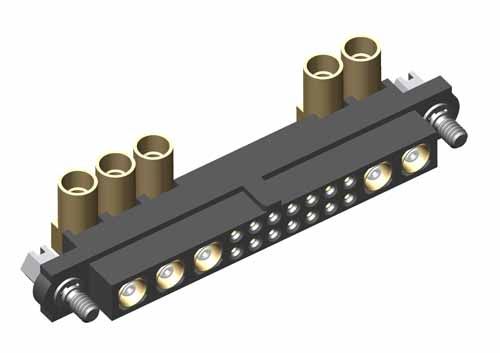

M80-4C11442F1-03-309-02-309

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5L11205M7-04-313-00-000

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
