M80-5L20222M5-02-334-02-334

Datamate 2-Row Mix-Tek Male Horizontal Throughboard Connector, Jackscrews + 5mm board mount bolts, 2 x 4.5mm Throughboard signal contacts, 4 x 5mm Throughboard Power contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 22
All prices are in USD
SPQ: 9		 Quantity Unit Price Ext Price Packaging
54 $66.24 $3576.96 Tube
108 $59.04 $6376.32 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of RowsMixed
Number Of Contacts2
Current RatingSignal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 235°C for 5 seconds
Jackscrew StyleInternal Thread Jackscrew with Slotted Board Mount Bolts (Standard Gender)
Termination FinishTin/Lead (signal), Gold (power)
Housing MaterialPPS
Flammability RatingUL94V-0
Weight3.928g
Dimensions28.00 x 8.60 x 11.00
Above Board Height6.00mm
End StackableNo
Mating Pin SizeØ0.5mm (signal)

Environmental and Export

Rohs StatusNot RoHS Compliant (2015/863/EU)

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9041802

 View Details
Image 1 Image 1

M80-9051802

 View Details

Use with Connector Series

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5L20222M5-02-334-02-334

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2270000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

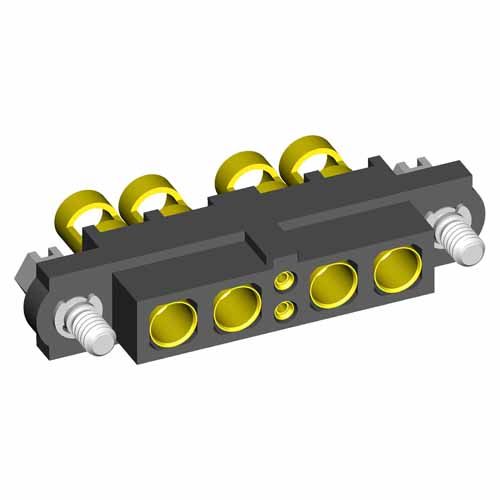

M80-4C10205F1-02-325-02-325

 View Details
Image 1 Image 1

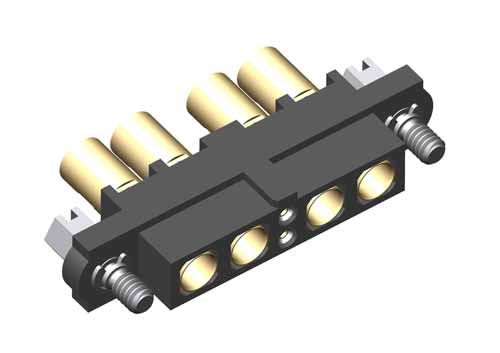

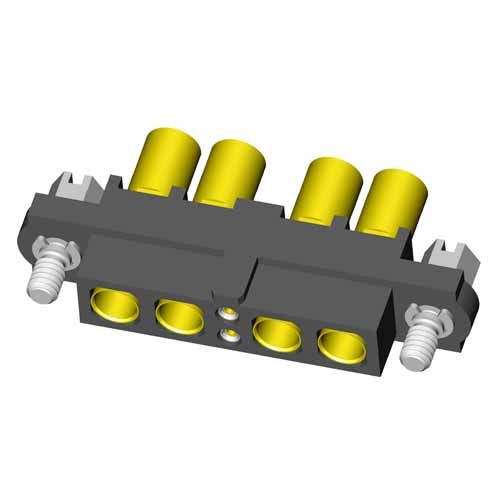

M80-4C10242F1-02-325-02-325

 View Details
Image 1 Image 1

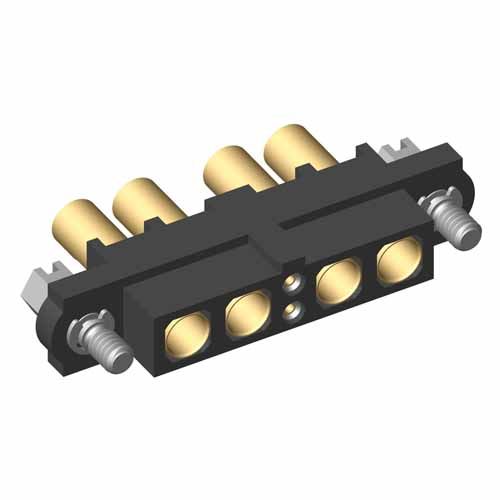

M80-4C10242F1-02-326-02-326

 View Details
Image 1 Image 1

M80-4C10242F1-02-327-02-327

 View Details
Image 1 Image 1

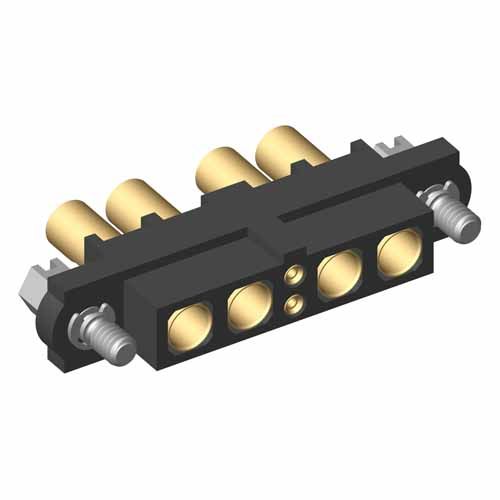

M80-4D10205F1-02-327-02-327
