M80-4C10242F1-02-326-02-326

Datamate 2-Row Mix-Tek Female Crimp Connector, Hexagonal slotted jackscrews, 2 x Small Bore (24-28 AWG) signal contacts, 4 x 14 AWG Power contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 25
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
50 $25.289 $1264.45 Single Pack

Product Attributes

ManufacturerHarwin
PackageSingle Pack
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
GenderFemale
OrientationStraight
Connection TypeCable (Solder + Crimp)
Wire Size24-28 AWG + 14 AWG
Number Of RowsMixed
Number Of Contacts2
Current RatingSignal = 3.3A max individual contact, 3A max simultaneous; Power = 15A max per contact
Environmental Ratings-55°C to +125°C
Jackscrew StyleFloating Jackscrew with Hex Slotted Head (Standard Gender)
Termination Finish100% Tin over Nickel (signal), Gold (power)
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.919g
Dimensions28.00 x 5.50 x 13.00
End StackableNo
Mating Pin SizeØ0.5mm (signal)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

T5747

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details
Image 1 Image 1

Z80-290

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9451802

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0130001

 View Details
Image 1 Image 1

M80-326

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Connector Series

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4C10242F1-02-326-02-326

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5L20222M5-02-334-02-334

 View Details
Image 1 Image 1

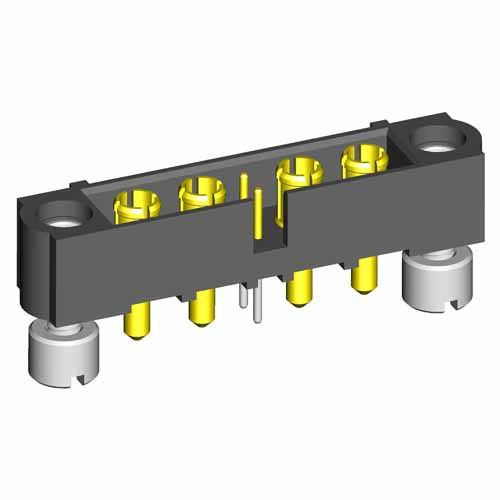

M80-5T10222M2-02-331-02-331
