M80-5T11205M3-04-311-00-000

Datamate 2-Row Mix-Tek Male Vertical Throughboard Connector, Jackscrews + 5mm board mount, 12 x 3mm Throughboard signal contacts, 4 x 3mm Throughboard coax contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of RowsMixed
Number Of Contacts12
Current RatingSignal = 3.3A max individual contact, 3A max simultaneous; Coax = 0.5A per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.513g
Dimensions38.00 x 6.00 x 10.55
Above Board Height5.55mm
End StackableNo
Mating Pin SizeØ0.5mm (signal)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-298

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9062802

 View Details

Use with Connector Series

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5T11205M3-04-311-00-000

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

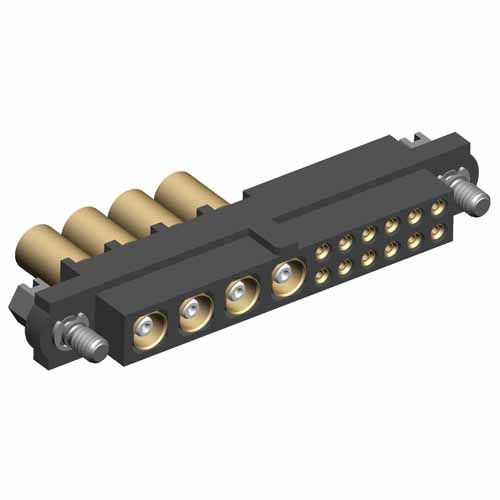

M80-4C11205F1-04-307-00-000

 View Details
Image 1 Image 1

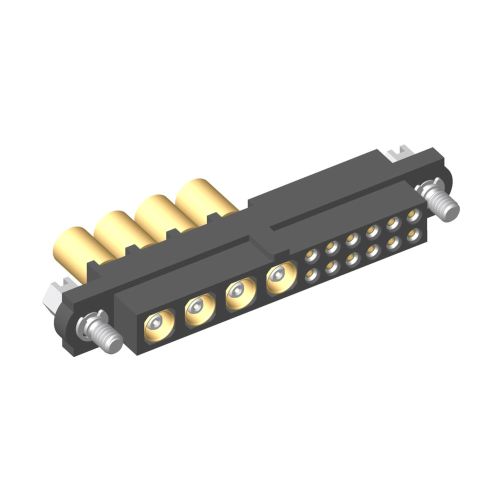

M80-4C11242F1-04-307-00-000

 View Details
Image 1 Image 1

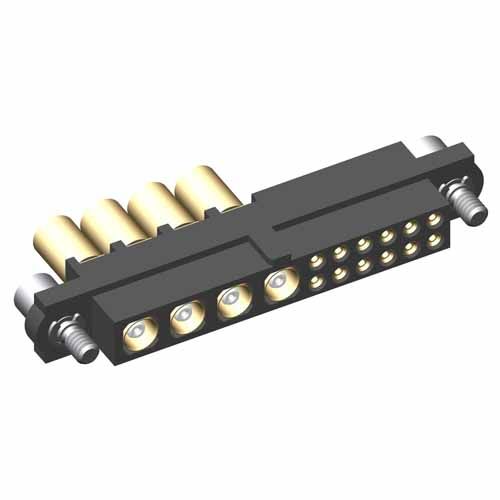

M80-4C11242F2-04-307-00-000

 View Details
Image 1 Image 1

M80-4D11242F2-04-000-00-000

 View Details
Image 1 Image 1

M80-263F104-12-00

 View Details
Image 1 Image 1

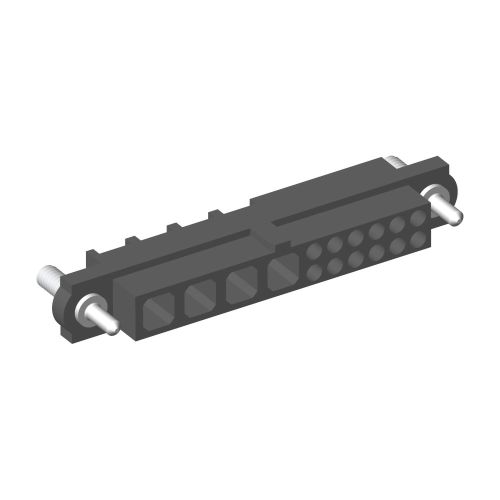

M80-263F304-12-00
