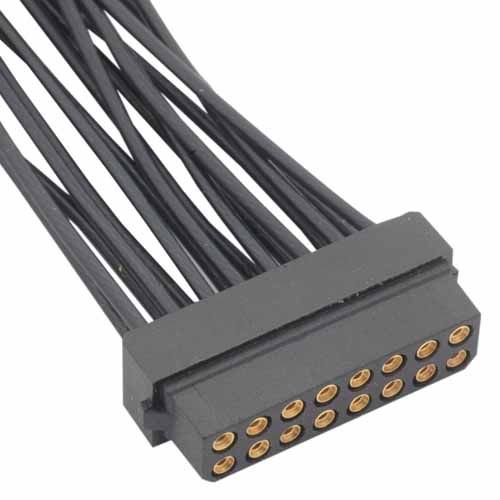

M80-8881605

Datamate L-Tek DIL Female Small Bore (24-28 AWG) Crimp Connector, gold clip + gold shell, 8+8 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 22
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
50 $7.097 $354.85 Bulk/Loose
100 $6.674 $667.4 Bulk/Loose
250 $6.153 $1538.25 Bulk/Loose
500 $5.893 $2946.5 Bulk/Loose
1000 $5.89 $5890 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size24-28 AWG
Number Of Rows2
Number Of Contacts16
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Latching StyleCompatible with latches
Termination FinishGold
Housing MaterialPBT
Flammability RatingUL94V-0
Weight1.65g
Dimensions19.15 max x 5.40 x 8.15 max
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

T5747

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8801698

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0130005

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8281642

 View Details
Image 1 Image 1

M80-8511642

 View Details
Image 1 Image 1

M80-8531642

 View Details
Image 1 Image 1

M80-6661642

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8881601

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-8441645

View Details

M80-8501645

View Details

M80-8891605

View Details

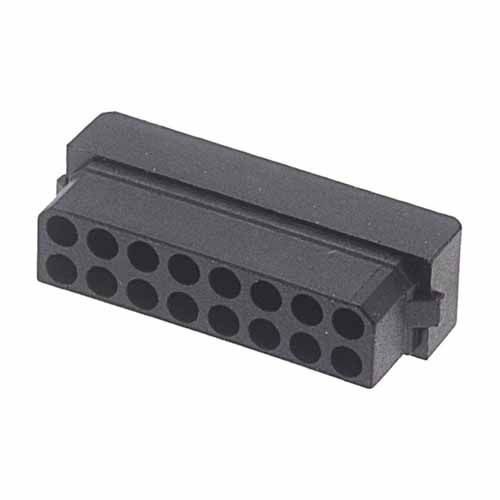

M80-1031698S
