M80-8450245

Datamate L-Tek SIL Female Small Bore (24-28 AWG) Crimp Connector, gold clip + gold shell, hi-temp housing, 2 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
500 $1.35 $675 Bulk/Loose
1000 $1.27 $1270 Bulk/Loose
2500 $1.2 $3000 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size24-28 AWG
Number Of Rows1
Number Of Contacts2
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Latching StyleCompatible with latches
Termination FinishGold
Housing MaterialPolyamide (Nylon) 46
Flammability RatingUL94V-0
Weight1.214g
Dimensions7.15 max x 3.40 x 8.15 max
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

T5747

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0130005

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8060205

 View Details
Image 1 Image 1

M80-8070205

 View Details
Image 1 Image 1

M80-8080205

 View Details
Image 1 Image 1

M80-8090205

 View Details
Image 1 Image 1

M80-8360242

 View Details
Image 1 Image 1

M80-8370242R

 View Details
Image 1 Image 1

M80-8420242

 View Details
Image 1 Image 1

M80-8430242

 View Details
Image 1 Image 1

M80-8520242

 View Details
Image 1 Image 1

M80-8820242

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

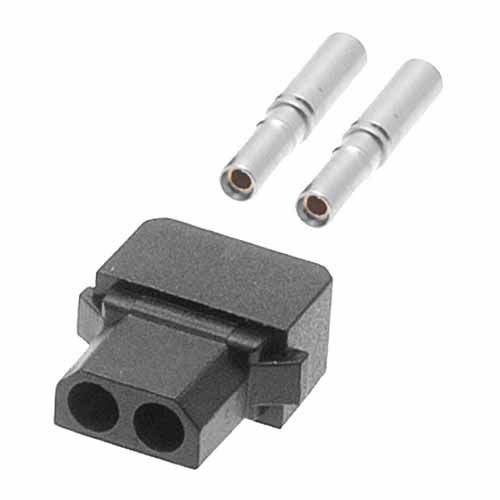

M80-8450242

 View Details
