M80-8370242R

Datamate L-Tek SIL Male Horizontal SMT Connector, unlatched, selective gold + tin, 2 contacts, Tape and Reel packaging

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: =VLOOKUP(H8158,'[1]trustpart 2025'!$B$2:$D$15982,3,0)
Quantity Unit Price Ext Price Packaging
700 $1.371 $959.7 Tape and Reel
2800 $1.37 $3836 Tape and Reel
5600 $1.32 $7392 Tape and Reel


Product Attributes

ManufacturerHarwin
PackageTape and Reel
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationHorizontal
Connection TypeSurface Mount (SMT)
Number Of Rows1
Number Of Contacts2
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Latching StyleNone
Termination Finish100% Tin over Nickel
Housing MaterialPPS
Flammability RatingUL94V-0
Weight0.178g
Dimensions7.60 x 7.50 x 3.85
Above Board Height3.85mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Accessory

Articles from this product series can be use in the following assortments:

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-8360242R

View Details

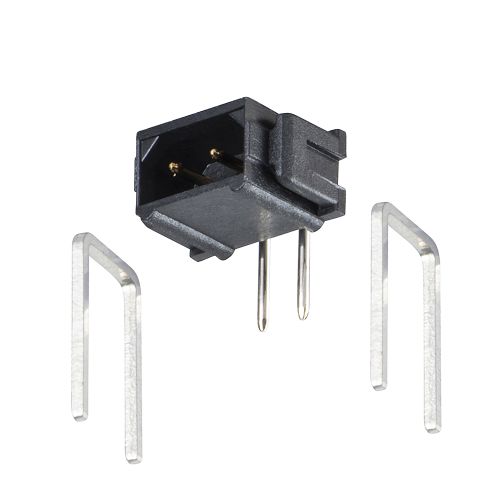

M80-8430242
