M55-5000642-0300A

6 Pos. Kontrol Male SIL IDC Cable Assembly 300mm Double-end

Download Datasheet Request Sample

Factory Lead Time (wks): 14
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
180 $9.93 $1787.4 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyBBi
Product StatusActive
RangeKONTROL
Pitch1.27mm (0.05")
GenderMale
OrientationStraight
Connection TypeCable Assembly
Wire Size30 AWG
Number Of Rows1
Number Of Contacts6
Current Rating1.2A max per contact
Environmental Ratings-20°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Housing MaterialPPA
Flammability RatingUL94V-0
Weight7.036g
Dimensions328.00 x 18.50 x 5.00
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M55-2100642R

 View Details
Image 1 Image 1

M55-4000642-0150A

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-9021042

 View Details
Image 1 Image 1

M55-8001242-0300A

 View Details
Image 1 Image 1

M55-8201242

 View Details
Image 1 Image 1

M55-3100642R

 View Details
Image 1 Image 1

M55-3000642R

 View Details
Image 1 Image 1

M55-5000642-0150A

 View Details
Image 1 Image 1

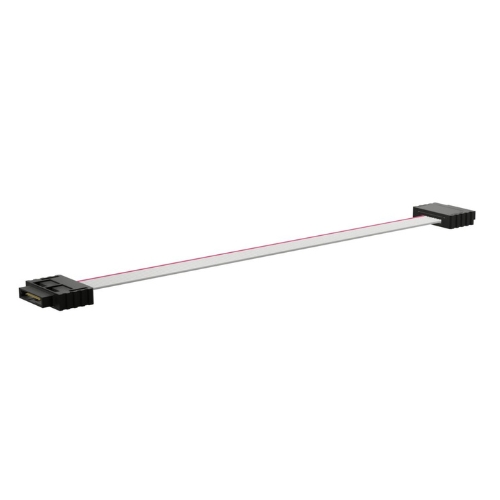

M55-5000842-0300A
