M80-5D10205M1-02-338-00-000

Datamate 2-Row Mix-Tek Male Crimp Connector, Jackscrews, 2 x Large Bore (22 AWG) signal contacts, 2 x 18 AWG Power contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin

PackageSingle Pack

Product FamilyHRi

Product StatusActive

RangeDatamate

Pitch2.00mm/4.00mm (0.079"/0.157")

GenderMale

OrientationStraight

Connection TypeCable (Crimp)

Wire Size22 AWG + 18 AWG

Current RatingSignal = 3.3A max individual contact, 3A max simultaneous; Power = 8A max per contact

Environmental Ratings-55°C to +125°C

Jackscrew StyleInternal Thread Jackscrew (Standard Gender)

Termination FinishGold

Housing MaterialPPS

Flammability RatingUL94V-0

Weight1.751g

Dimensions18.00 x 6.00 x 14.00

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

M22520/2-01

View Details

Z80-294

View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Z80-193

View Details

Z80-295

View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Z80-280

View Details

Z80-290

View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

M80-1940005

View Details

M80-338

View Details

Use with Connector Series

Articles from this product series can be use in the following assortments:

M80-5D10205M1-02-338-00-000

View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

M80-4C10205F1-02-325-00-000

View Details

M80-4C10205F2-02-325-00-000

View Details

M80-4C10205F2-02-328-00-000

View Details

M80-4D1020500-02-328-00-000

View Details

M80-4D10205F2-02-327-00-000

View Details

M80-4D10205F5-02-328-00-000

View Details

M80-4T10205F1-02-321-00-000

View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

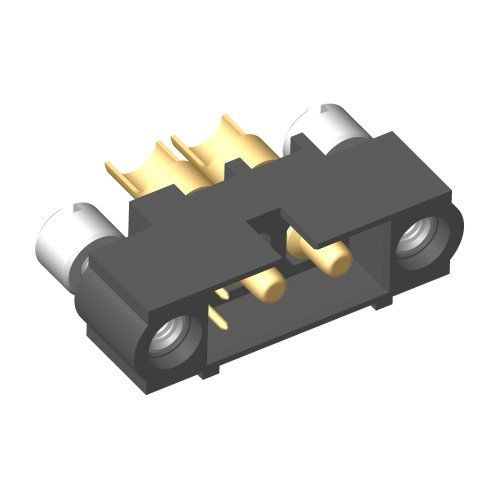

M80-5D10205M2-02-PM5-00-000

View Details

Documents & Media

Component Spec

Component Spec

Download

Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download

Web Address

Web Address

Download

Related Products

Following products can be suitable for the assortments.

M80-5600405

View Details

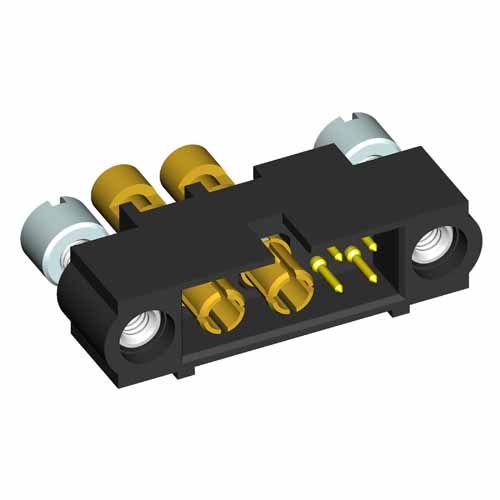

M80-5D10405M3-00-000-02-337
