M80-7531642

Datamate L-Tek DIL Male Vertical 4.5mm Throughboard Connector, latched, selective gold + tin, 8+8 contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Latching StyleLocking Latch
Termination Finish100% Tin over Nickel
Housing MaterialPPS
Flammability RatingUL94V-0
Weight0.811g
Dimensions20.10 x 5.85 x 12.85

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Separator Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-299

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0030006

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-6131645

 View Details
Image 1 Image 1

M80-6811642

 View Details
Image 1 Image 1

M80-7881605

 View Details
Image 1 Image 1

M80-8881605

 View Details
Image 1 Image 1

M80-8891605

 View Details
Image 1 Image 1

M80-8441645

 View Details
Image 1 Image 1

M80-8501642

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-7531645

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-7711645

View Details

M80-8281642

View Details

M80-8531642

View Details

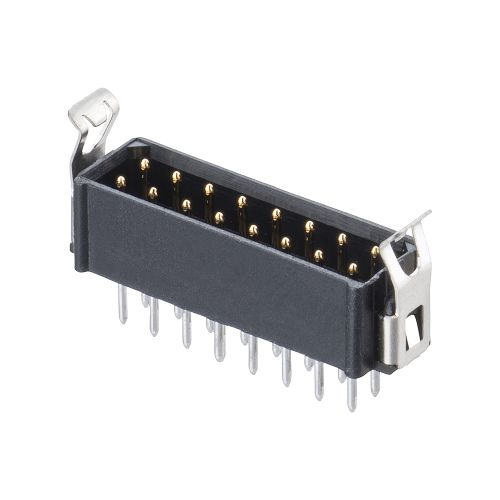

M80-8671622
