M80-8531642

Datamate L-Tek DIL Male Vertical 3mm Throughboard Connector, latched, selective gold + tin, 8+8 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 25
All prices are in USD
SPQ: 13
Quantity Unit Price Ext Price Packaging
104 $3.53 $367.12 Tube
507 $3.094 $1568.658 Tube
1001 $2.975 $2977.975 Tube
2509 $2.97 $7451.73 Tube


Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts16
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Latching StyleLocking Latch
Termination Finish100% Tin over Nickel
Housing MaterialPPS
Flammability RatingUL94V-0
Weight0.789g
Dimensions20.10 x 5.85 x 11.35
Above Board Height8.35mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Separator Tool

Articles from this product series can be use in the following assortments:

Use with Accessory

Articles from this product series can be use in the following assortments:

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-7531642

View Details

M80-8281642

View Details

M80-8511642

View Details

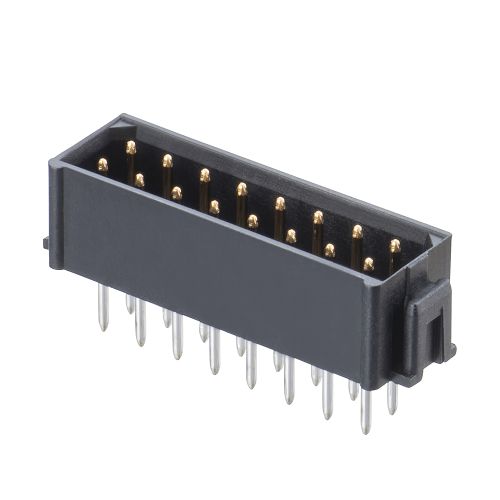

M80-8541642
