M80-8881601

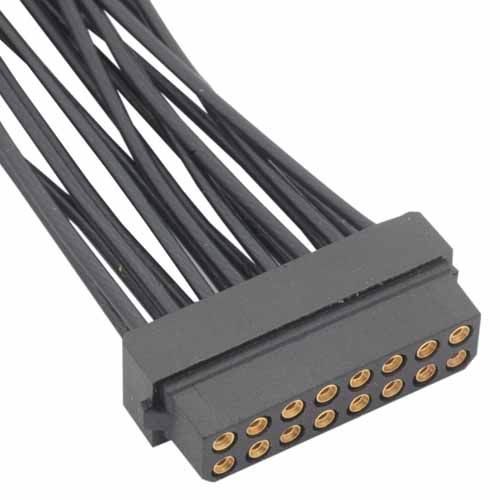

Datamate L-Tek DIL Female Small Bore (24-28 AWG) Crimp Connector, gold clip + tin shell, 8+8 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 20
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
100 $6.84 $684 Bulk/Loose
250 $6.1 $1525 Bulk/Loose
500 $5.73 $2865 Bulk/Loose
1000 $5.06 $5060 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size24-28 AWG
Number Of Rows2
Number Of Contacts16
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Latching StyleCompatible with latches
Termination Finish100% Tin over Nickel
Housing MaterialPBT
Flammability RatingUL94V-0
Weight1.669g
Dimensions19.15 max x 5.40 x 8.15 max
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

T5747

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8801698

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0130001

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-6661642

 View Details
Image 1 Image 1

M80-8281642

 View Details
Image 1 Image 1

M80-8511642

 View Details
Image 1 Image 1

M80-8531642

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-8881605

 View Details
