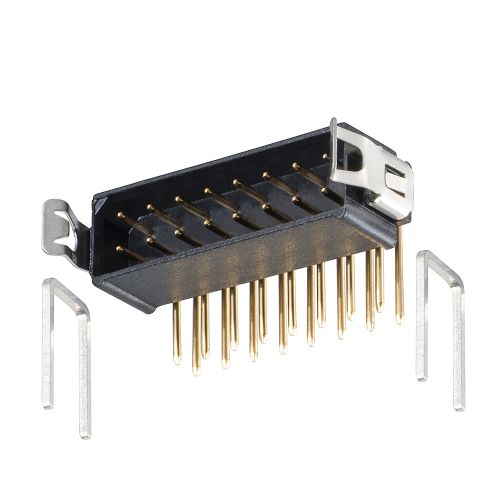

M80-8511642

Datamate L-Tek DIL Male Horizontal 3mm Throughboard Connector, latched, selective gold + tin, 8+8 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 26
All prices are in USD
SPQ: 13
Quantity Unit Price Ext Price Packaging
104 $4.851 $504.504 Tube
117 $4.8 $561.6 Tube
234 $4.22 $987.48 Tube
507 $4.216 $2137.512 Tube
585 $4.17 $2439.45 Tube


Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts16
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Latching StyleLocking Latch
Termination Finish100% Tin over Nickel
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.058g
Dimensions20.10 x 8.85 x 11.10
Above Board Height5.85mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Separator Tool

Articles from this product series can be use in the following assortments:

Use with Accessory

Articles from this product series can be use in the following assortments:

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-6661642

View Details

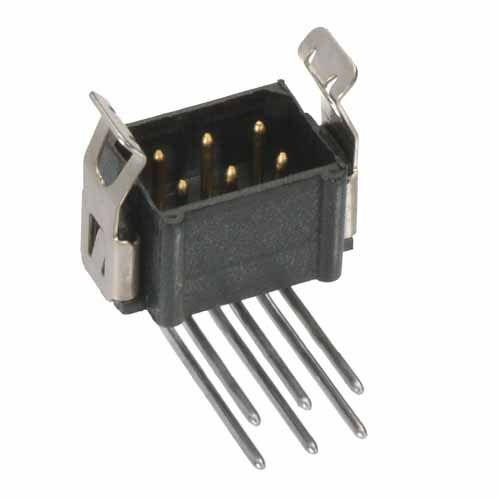

M80-7711645

View Details

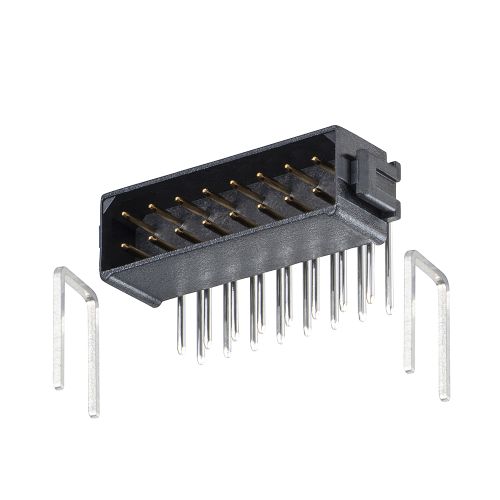

M80-8411642
